When quality matters in imaging QA - Test object for fluoroscopic and radiographic X-ray modalities

The NORMI RAD/FLU test object is used for acceptance and constancy tests of analogue and digital X-ray installations for fluoroscopy and radiography. The NORMI RAD/FLU structure plate includes a copper step wedge for testing the dynamic range, a resolution test pattern, low contrast and detail test elements.

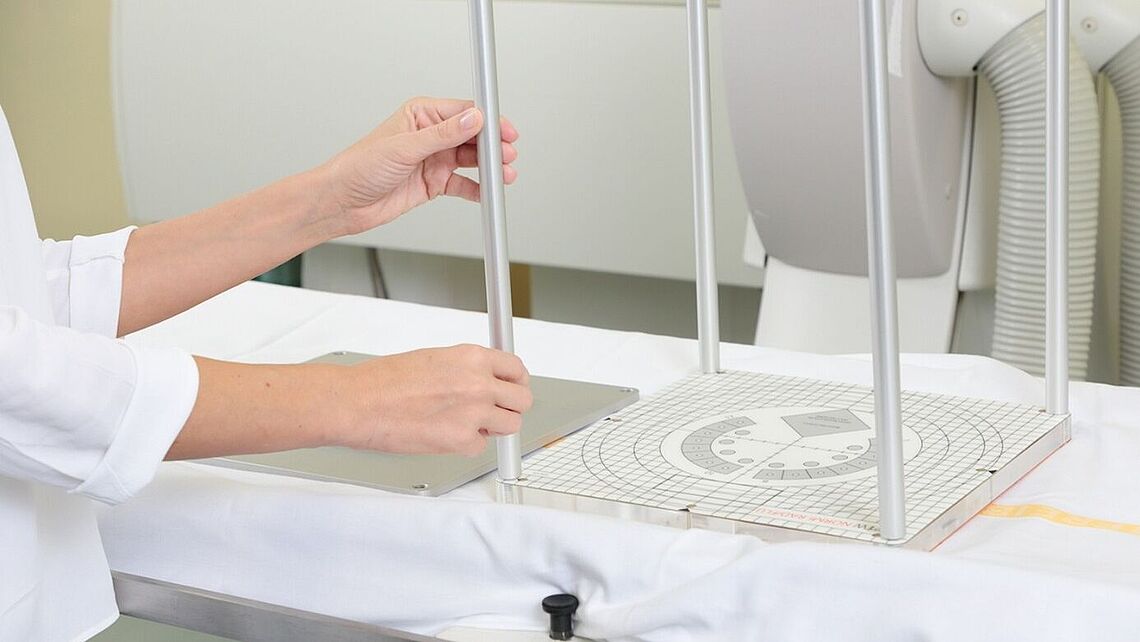

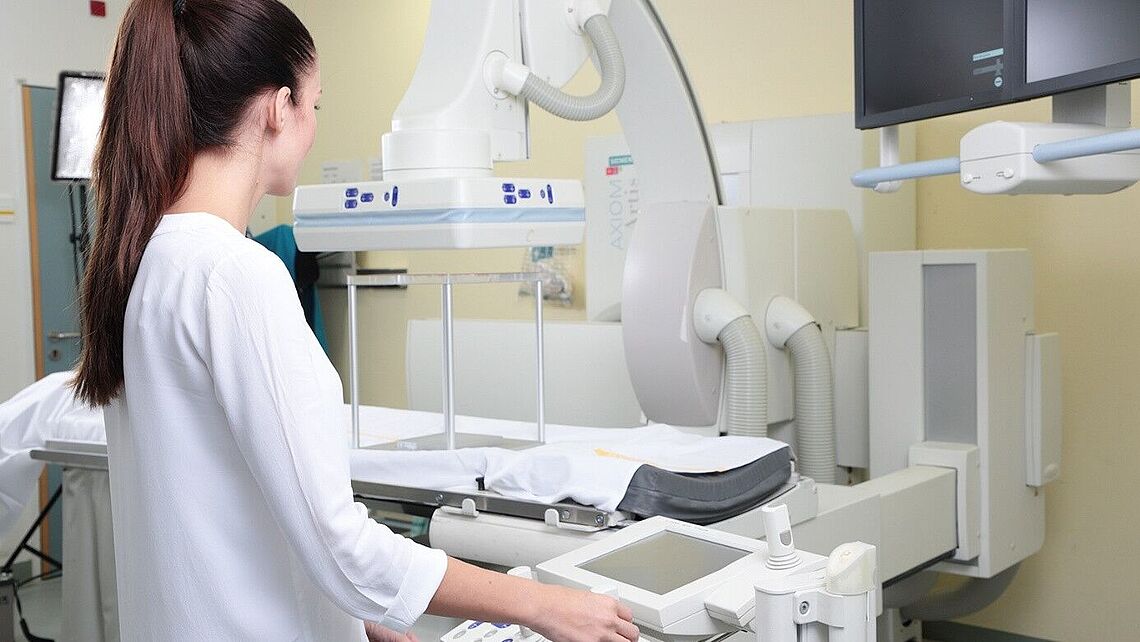

The structure plate enables checking all parameters in one shot. Four different NORMI RAD/FLU packages are available, either with the outer format (200 x 200) mm or (300 x 300) mm and either with a 30 mm thick PMMA plate and a 1 mm thick   copper plate or a 25 mm thick aluminum absorber, which must be used for acceptance tests for patient simulation. In addition, each package includes assembling parts which allow convenient adjustment of over-couch tubes, under-couch tubes and C arms. The entrance dose can be measured with a NOMEX Multimeter.
