BEAMSCAN^® Ringo

The Space-Saving Water Phantom for Ring-Gantry Linacs

Smart. Compact. Fully automated.

BEAMSCAN Ringo is the dedicated, budget-friendly 3D water phantom system optimized for ring-gantry linacs. Installed on a compact, mobile reservoir with integrated storage, BAMSCAN Ringo is easy to transport and even easier to set up—by just one person.

With fully automated setup, including auto leveling directly on the couch, Ringo saves both time and space. It fits into the tightest treatment and storage rooms and enables high-precision measurements with maximum efficiency.

Purpose-built. Practical. Precise.

Download brochure (PDF)

Why BEAMSCAN Ringo?

Dedicated 3D solution:
Designed for ring-gantry linacs and compact treatment rooms

Quick one-person setup:
Easy installation directly on the couch
Fully automated leveling:
TRULEVEL auto leveling on the couch – no tools, no manual adjustments
Compact footprint:
Smallest system in the portfolio – fits into tight spaces (0.79 m²)

Intelligent water management:
Automated filling, evaporation control, and automated TPR measurements

Mobile reservoir with storage:
Integrated compartments for safe accessory transport and storage
Wireless setup and operation:
Cable-free setup, control and data transfer
Modular, expandable design:
Add a lift or separate reservoirs for flexible, multi-linac or multi-site use

Image-based SSD check:
Optional positioning tool for fast SSD and isocenter verification

Who is BEAMSCAN Ringo for?

Clinics equipped exclusively or primarily with ring-gantry linacs

Sites with compact treatment rooms and limited space

Users looking for a compact, dedicated solution with future flexibility

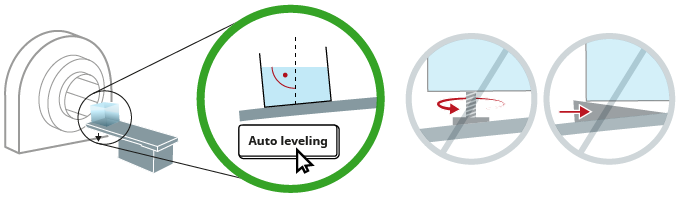

TRULEVEL Phantom Leveling

100 % automated. 100 % accurate.

Unlike other water phantoms that require manual adjustments or mechanical tools to compensate for couch tilt, BEAMSCAN Ringo uses advanced algorithms to level the phantom automatically – directly on the couch, inside the bore.
No reaching into the bore. No tools. No time wasted. No precision lost.

Just press start – and let TRULEVEL do the rest.

Fast Setup in 5 Easy Steps

From installation to measurement-ready in 5 simple steps, in under 17 minutes

1.

Install

Place Ringo beside couch, match couch height, slide phantom on, connect cables and water.

2.

Start auto setup

Launch BEAMSCAN Wizard on your smart device, start “Reference Run.”

3.

Fill and level

Fill water, adjust couch height, move phantom into gantry, run auto leveling.

4.

Mount detector

Check SSD via imaging with click-fix positioning tool, clip in TRUFIX holder with field detector.

5.

Finish in control room

Start “Auto Setup” in software, power on linac, complete CAX & rotational correction.

BEAMSCAN Ringo in Focus

Discover how BEAMSCAN Ringo brings precision and practicality to beam data measurements at ring-gantry linacs. From compact design to fully automated setup – see how every detail is engineered for tight spaces, fast workflows, and effortless handling.

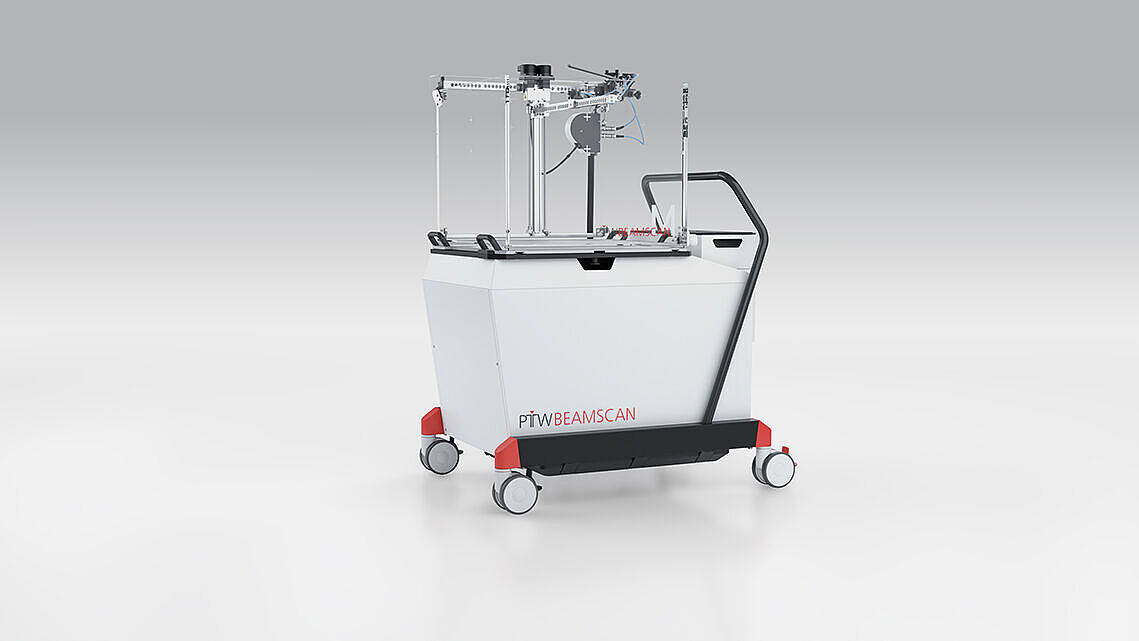

Dedicated ring-gantry solution with the smallest footprint (0.79 m³).

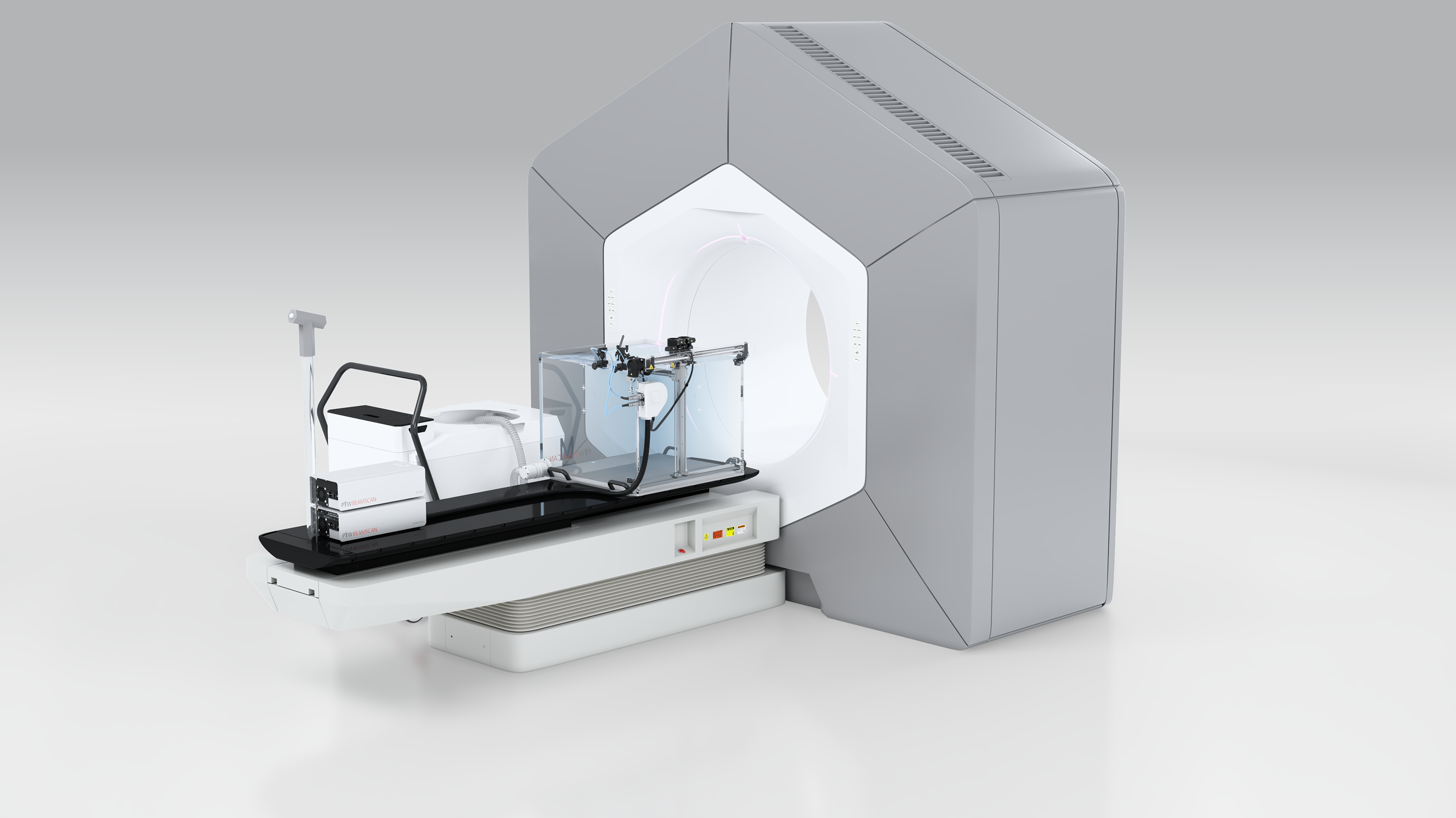

Quick and easy to install by a single person.

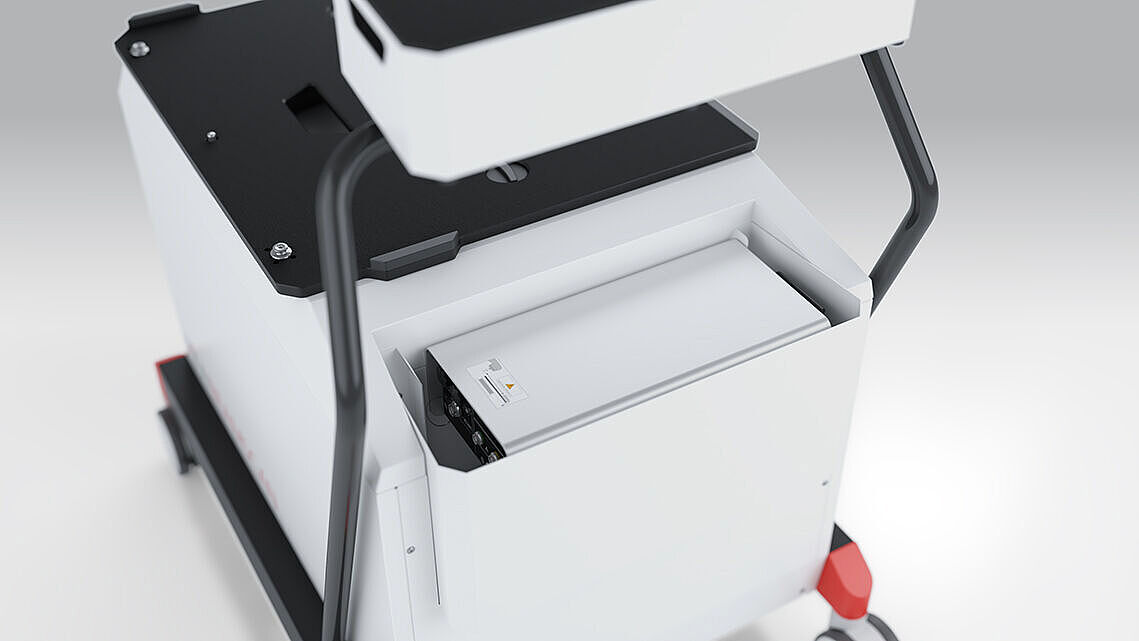

Ringo compartments — Practical compartments for all accessories.

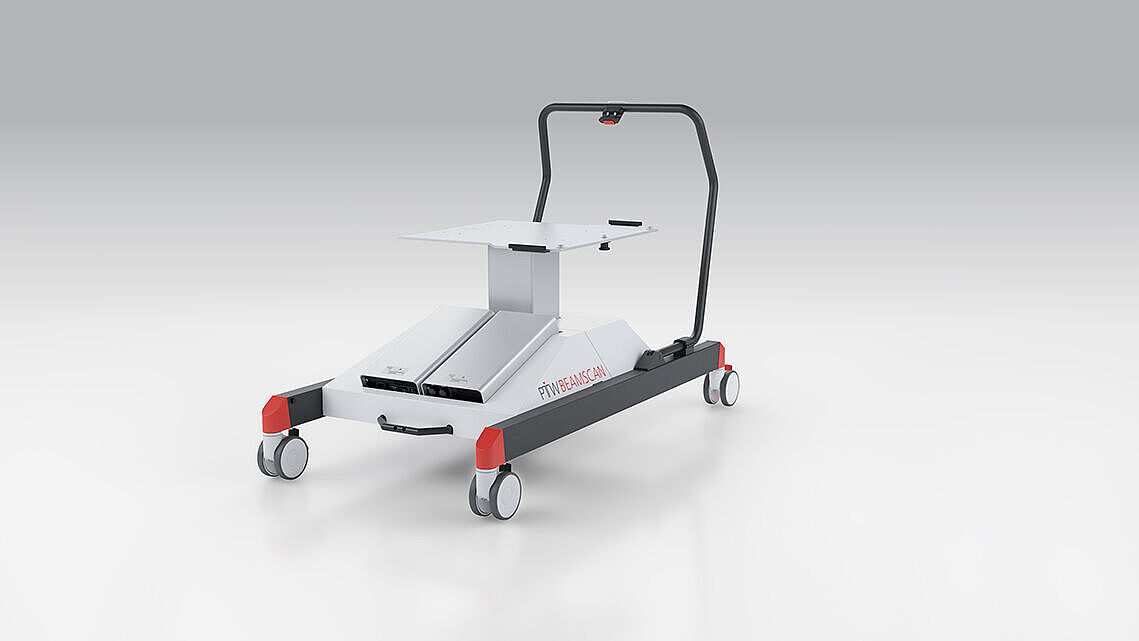

Optional lifting carriage for use with other linac types.
