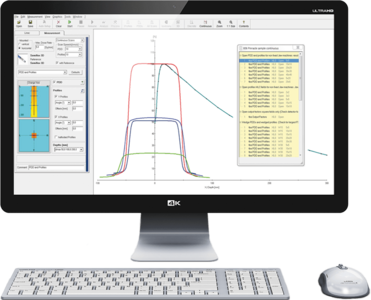

Scan. Analyze. Process. Document.

Benefit from BEAMSCAN’s advanced software functions and tools that help you get accurate beam data much faster.

Precision scans at maximum speed

Save valuable linac time. Automate beam data acquisition with ready-to-use task lists for all major treatment planning systems. Create your own task lists to streamline repetitive and regular tasks, e.g., monthly or annual QA.

Key measurement tools at a glance

  • TPS-specific, customizable task lists for streamlined beam data collection
  • Automatic water level check and reminder for efficient evaporation control
  • Online 1D gamma evaluation with traffic light assessment for immediate feedback on scan quality
  • Scan time predictor to better manage your measurement schedule
  • Advanced measurement options, e.g., TPR/TMR, output factors, absolute dose
  • Automatic beam inclination correction and “Dose Maximum Search” for accurate small-field measurements

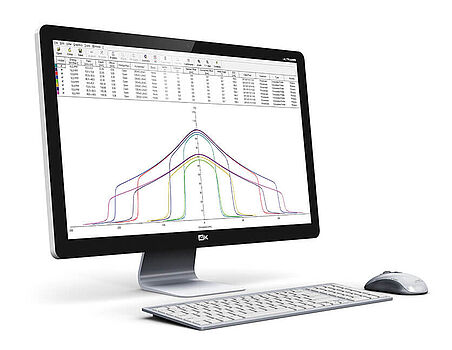

Analyze your beam data with a few clicks

BEAMSCAN software instantly analyzes your scans based on preset quality criteria or dosimetry protocols. Compare multiple scans against reference scans in seconds. Spot critical deviations immediately.

Key analysis tools at a glance

  • Multiple 1D Gamma scan comparison with “traffic light” results summary
  • Automated beam data analysis based on international, vendor-specific or user-defined dosimetry protocols
  • Automatic evaluation of FFF beam profiles
  • TPR/TMR calculations from depth dose measurements

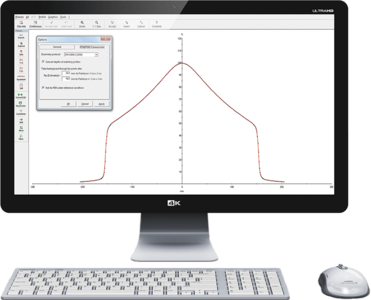

Optimize scans for analysis

Save measurement time and improve scan quality with AI-based data processing. Choose from a variety of mathematical functions and filters that aid in visualization and data analysis.

Key processing tools at a glance

  • AI-based data processing
  • Smoothing data
  • Shifting profiles or PDDs
  • Normalizing profiles and PDDs
  • Mirroring profiles

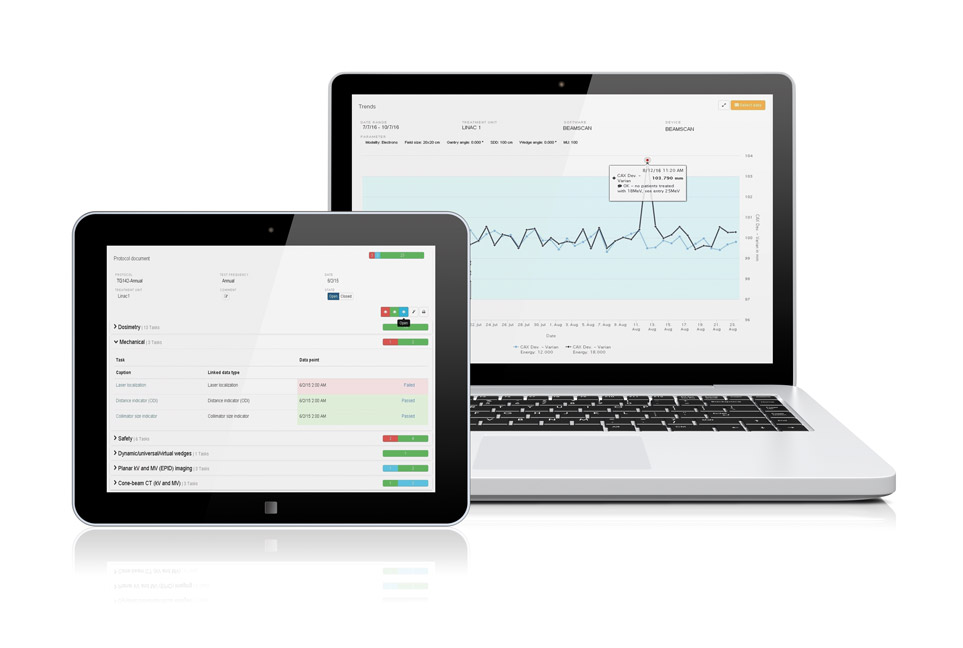

Track, trend and report with Track-it

Export your analyzed beam data to Track-it. Combined with BEAMSCAN software, the easy-to-use Track-it QA data management platform provides you with a streamlined solution from scanning to reporting that helps you maintain regulatory compliance.

Key reporting tools at a glance

  • Quick browser-based access to all QA data from anywhere in your network
  • Automated monitoring of QA tasks and reports on a single platform
  • Predefined, easy-to-customize protocol templates, e.g., for AAPM TG-142, DIN 6847-5/-6, 6875-4
  • Online or offline QA report generation, e.g., in vaults without wireless network
  • Trend analysis over time and across multiple measurement or treatment devices



Learn more about Track-it

Fast, Accurate Small-Field Dosimetry

BEAMSCAN is the only water phantom that identifies and automatically corrects beam inclination.

Explore this and other features that make BEAMSCAN the ideal system for fast and highly accurate small-field PDD and profile measurements, including automated beam inclination correction and small-field output factor measurements.



Download infographic

AI-Based Data Processing

Delivering accurate scans much faster

BEAMSCAN is the first water phantom which uses artificial intelligence (AI) to improve scan quality and, at the same time, significantly speed up profile and PDD measurements performed with Semiflex 3D and microDiamond detectors.

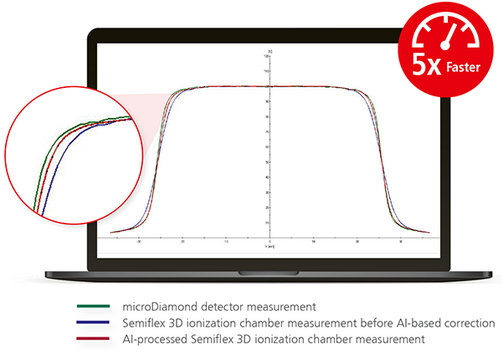

AI-Based “Deconvolve” Function:

Gold standard accuracy at up to 5x faster scanning speeds

Beam profiles of a 5 cm x 5 cm radiation field measured with Semiflex 3D ionization chamber at 10 mm/s scan speed before and after AI-based correction compared to a microDiamond detector measurement at 2 mm/s scan speed. The AI-based “Deconvolve” function corrects the volume effect in the penumbra region of beam profiles measured with the Semiflex 3D chamber in a one-click operation, achieving an accuracy comparable to that of microDiamond detector measurements.

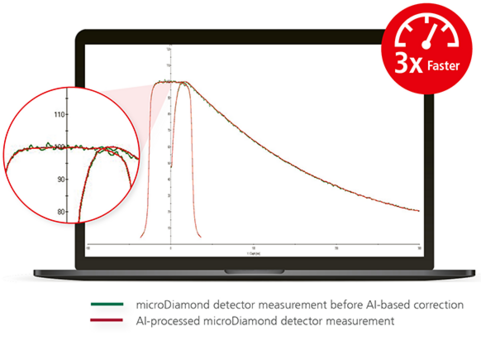

AI-Based “Denoise” Function:

Accurate scans at up to 3x faster scanning speeds

Beam profile and PDD measured with microDiamond detector at 20 mm/s scan speed before and after applying AI-based noise reduction. A higher scanning speed can impact the quality of profile and PDD measurements. The AI-based “Denoise” function compensates for signal noise in microDiamond detector measurements, which can be performed up to three times faster.





How does AI-based data processing work?

PUBLICATION

WEBINARS

FAQ

TPS Validation

Efficiently validate your treatment planning system with your BEAMSCAN water phantom by comparing TPS data against actual water tank measurements.

DICOM2MCC – free and exclusive for any BEAMSCAN user

Select beam profiles and PDDs for validation and convert them into PTW MCC data format with DICOM2MCC.

DICOM2MCC is an independent software tool that converts DICOM data (RT Plan, RT Dose) from your TPS into PTW mcc format, enabling you to create a reference data set as required by your TPS. Use the versatile tools of the BEAMSCAN software to process, analyze, and compare your measured data against the TPS data. Save your validation and QA results in a PDF format for easy sharing and documentation.

For further insights, download the infographic “TPS validation in six easy steps”.

Access DICOM2MCC
