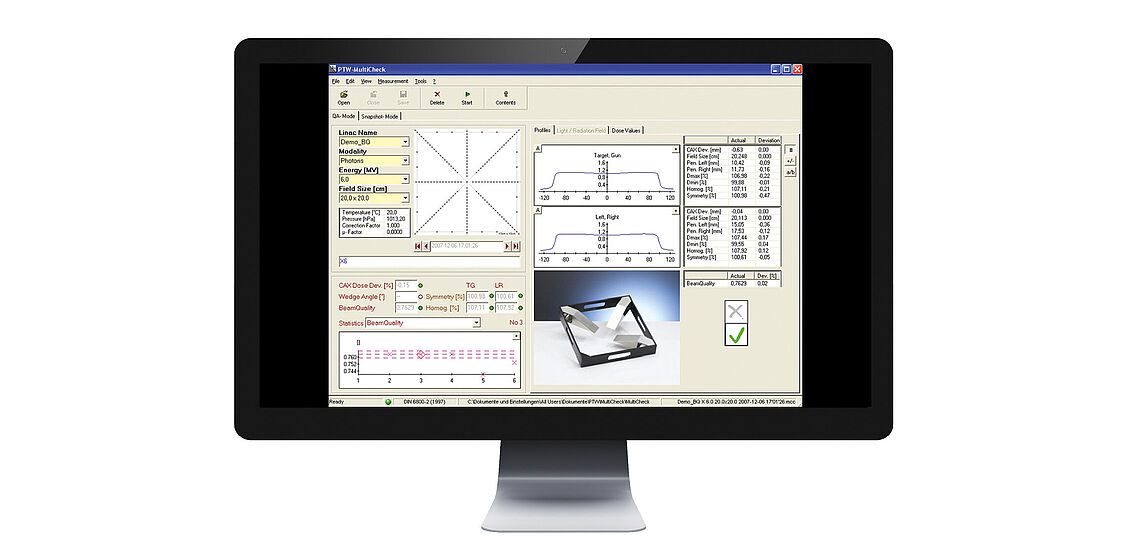

MultiCheck

Software program to check the consistent performance of linear accelerators by using PTW 2D ion chamber arrays

The MultiCheck Software has been designed for fast and easy routine constancy tests of high-energy photon and electron beams from linear accelerators. In combination with OCTAVIUS 4D it provides advanced linac QA capabilities, supporting all available 2D Arrays including the PTW STARCHECK / OCTAVIUS detector families.

Key Features

  • Checks flatness, symmetry, field size, dose deviation in the central axes, wedge angle of dynamic, virtual and fixed wedges
  • Checks beam quality if used with the BQ-CHECK phantom
  • Checks congruence of light/radiation field if used together with the FIELDCHECK phantom
  • User-defined reference parameters,  thresholds and/or tolerances
  • Data analysis, tracking and trending tools against various protocols
  • Export capability, integration with PTW Track-it software

Specifications

Operating system: Microsoft® Windows®
(Windows 7 Professional x32/x64,
Windows 8 Professional x32/x64,
Windows 10 Pro x32/x64)

Processor: multi-core processor, 2.3 GHz or better
Memory (RAM): min. 4 GB, 8 GB recommended
Hard disk: min. 500 MB of free space for application software and 1.5 GB of free space for .NET Framework 2.0, 3.5 and 4.0+
Screen resolution: 1280 x 1024 or higher
Interfaces: Network interface
Other: Windows® Internet Explorer® 8.0 or higher, Adobe® Reader® 7.0 or higher

Related Downloads

Catalog
Radiation Medicine Catalog ( 6 MB )
