DE.TEC.TOR Solutions

DE.TEC.TOR has specialized in the design and manufacturing of high-quality devices for precise monitoring and verification of therapeutic particle beams. Their portfolio comprises a variety of dedicated tools for fast, reliable and ultra-precise QA measurements – from quick verifications of Bragg peaks and spread-out Bragg peaks (SOBP) during weekly and monthly quality assurance, from beam characterization tests to spot characterization and machine QA.

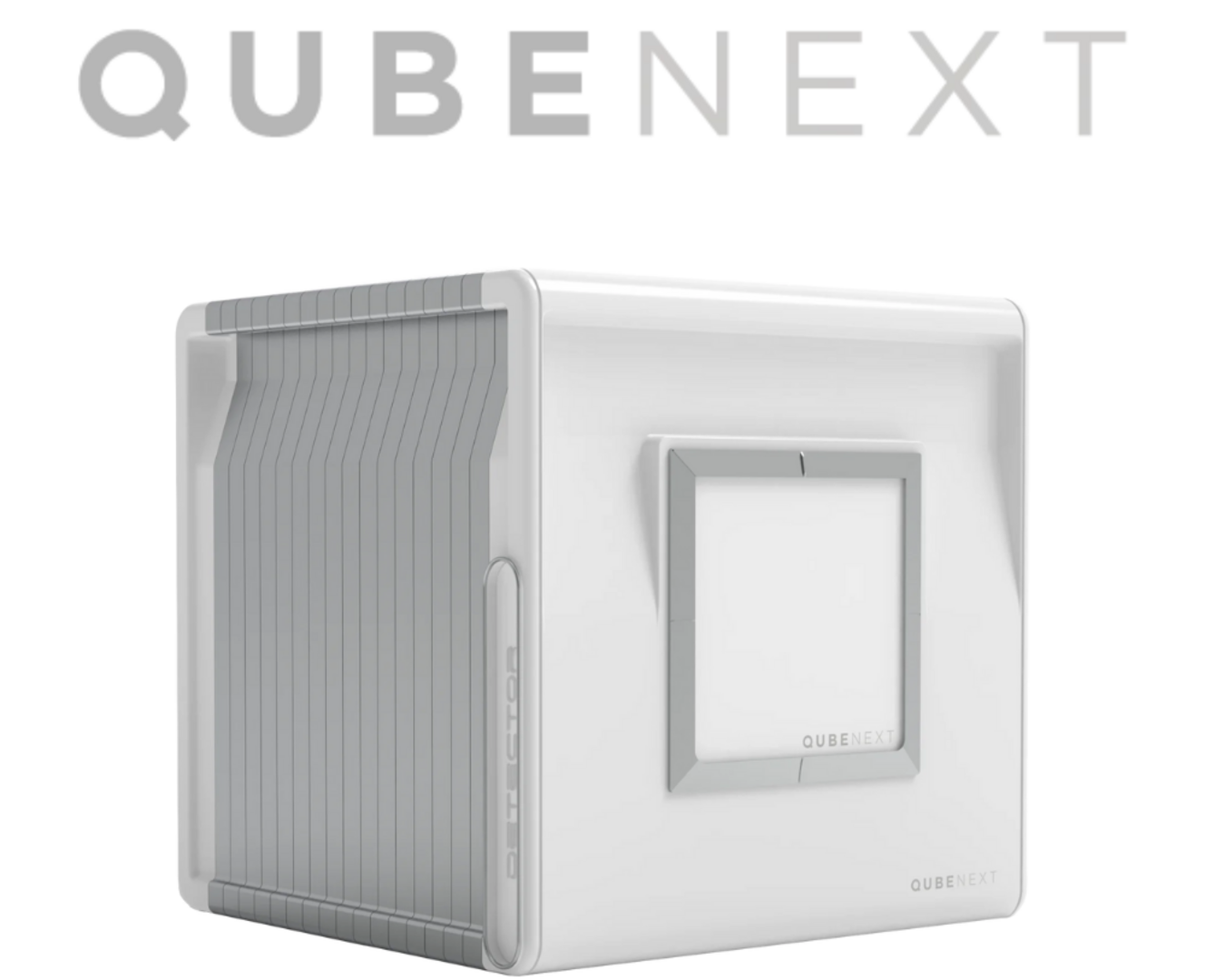

QUBENEXT

QUBENEXT is an MLIC-detector for the measurement of depth dose curves.
This base version contains 4 modules allowing a measuring depth of 77 mm wet (2.4 mm resolution).
The sensitive area is 127 mm x 127 mm. Additional modules for a wet of about 300 mm max and an xy-detector add-on are available.

More information

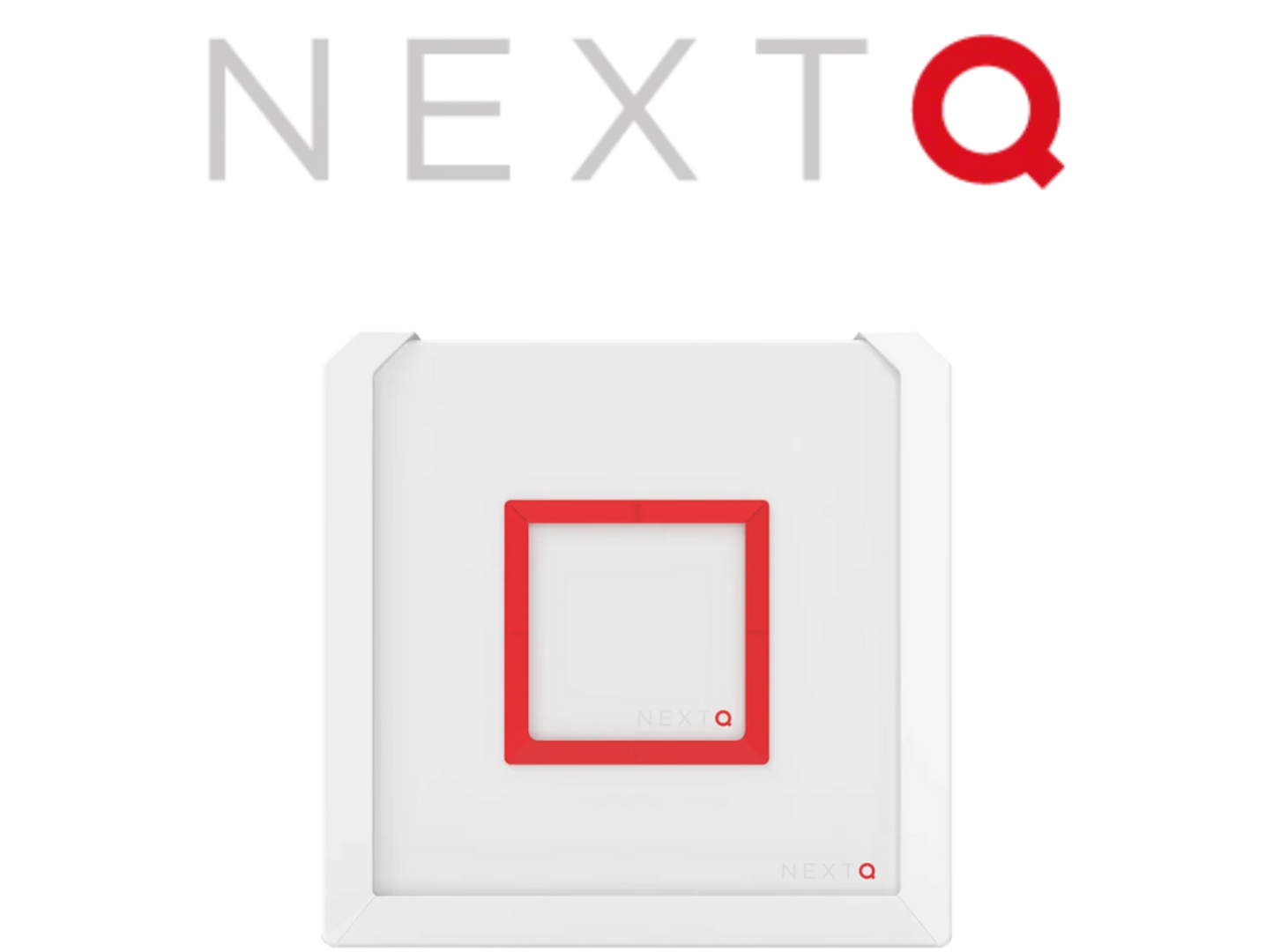

NEXTQ

NEXTQ is a device to measure beam characteristics (intensity and lateral profiles) in a single beam shot.
It consists of x and y strip ionization chambers, resolution 1 mm, and an integrating chamber.
The sensitive area is 127 mm x 127 mm.

More information

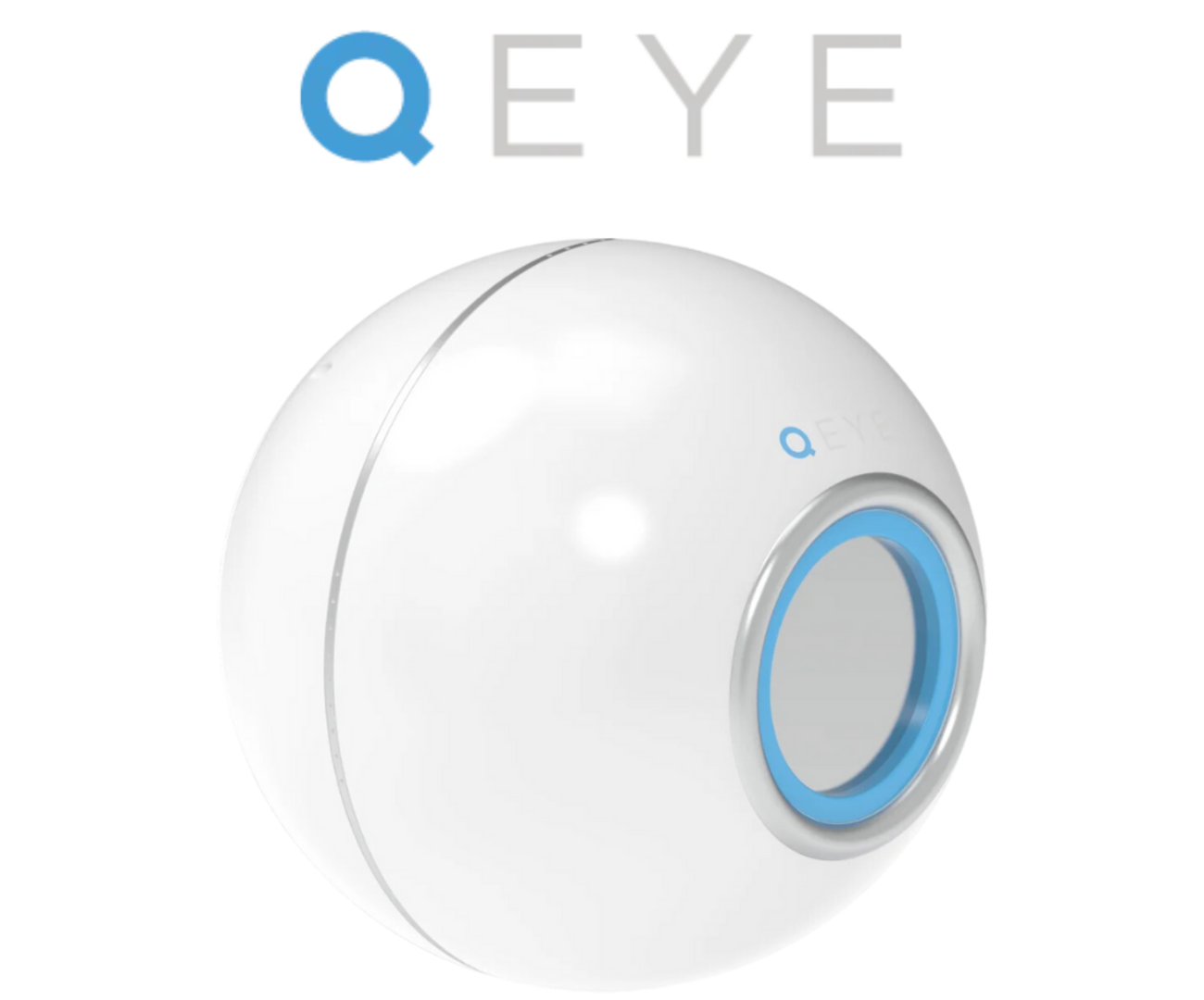

QEYE

QEYE is a multi-layer detector to measure depth dose curves to a depth of 60 mm wet.
120 µm resolution.
The diameter of the sensitive area is 80 mm.

More information

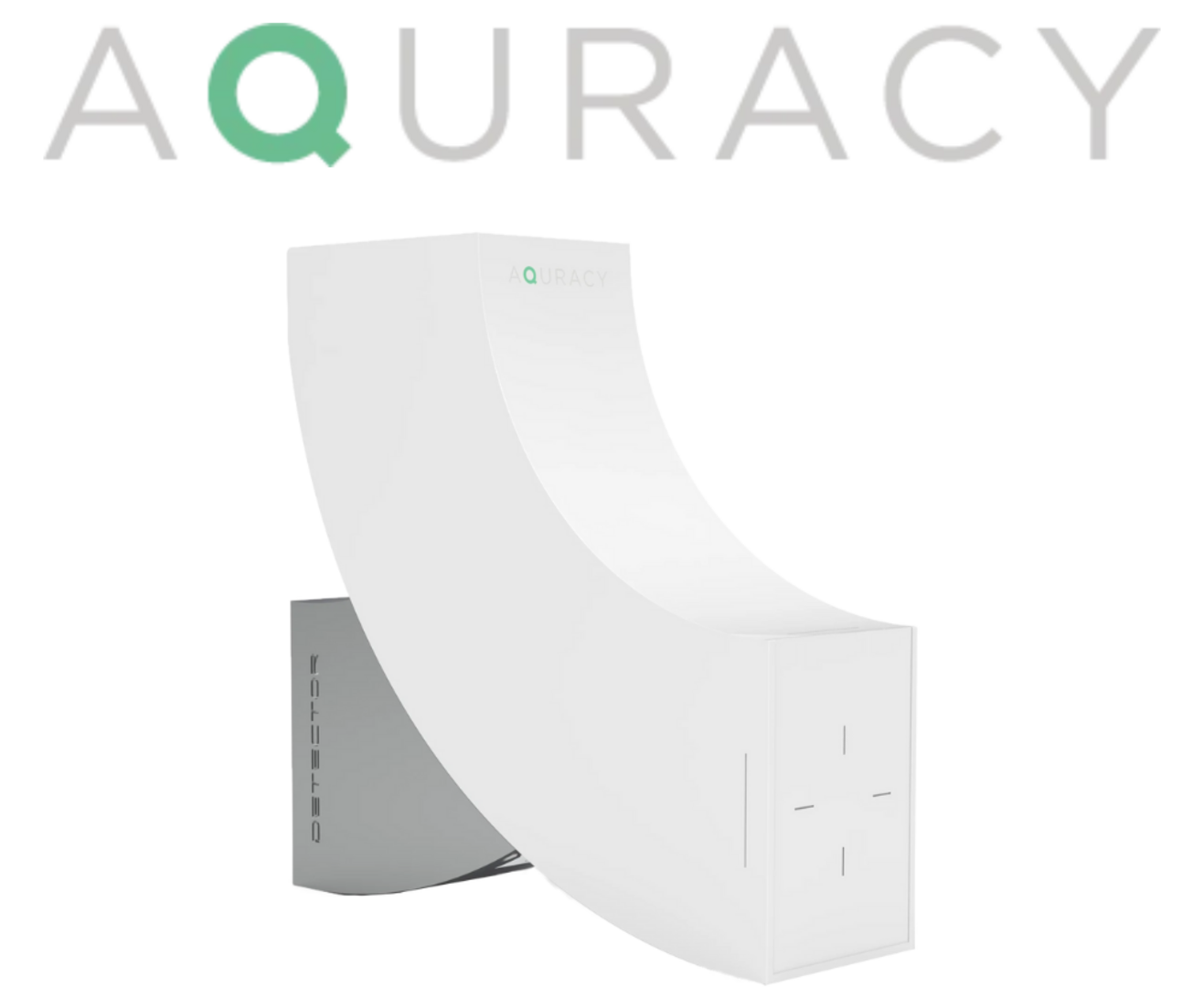

AQURACY

AQURACY is a detector to measure radiation characteristics in a single beam shot. The data comes from a 50 mm diameter scintillating screen and CCD camera.
The resolution is 10 µm.

More information

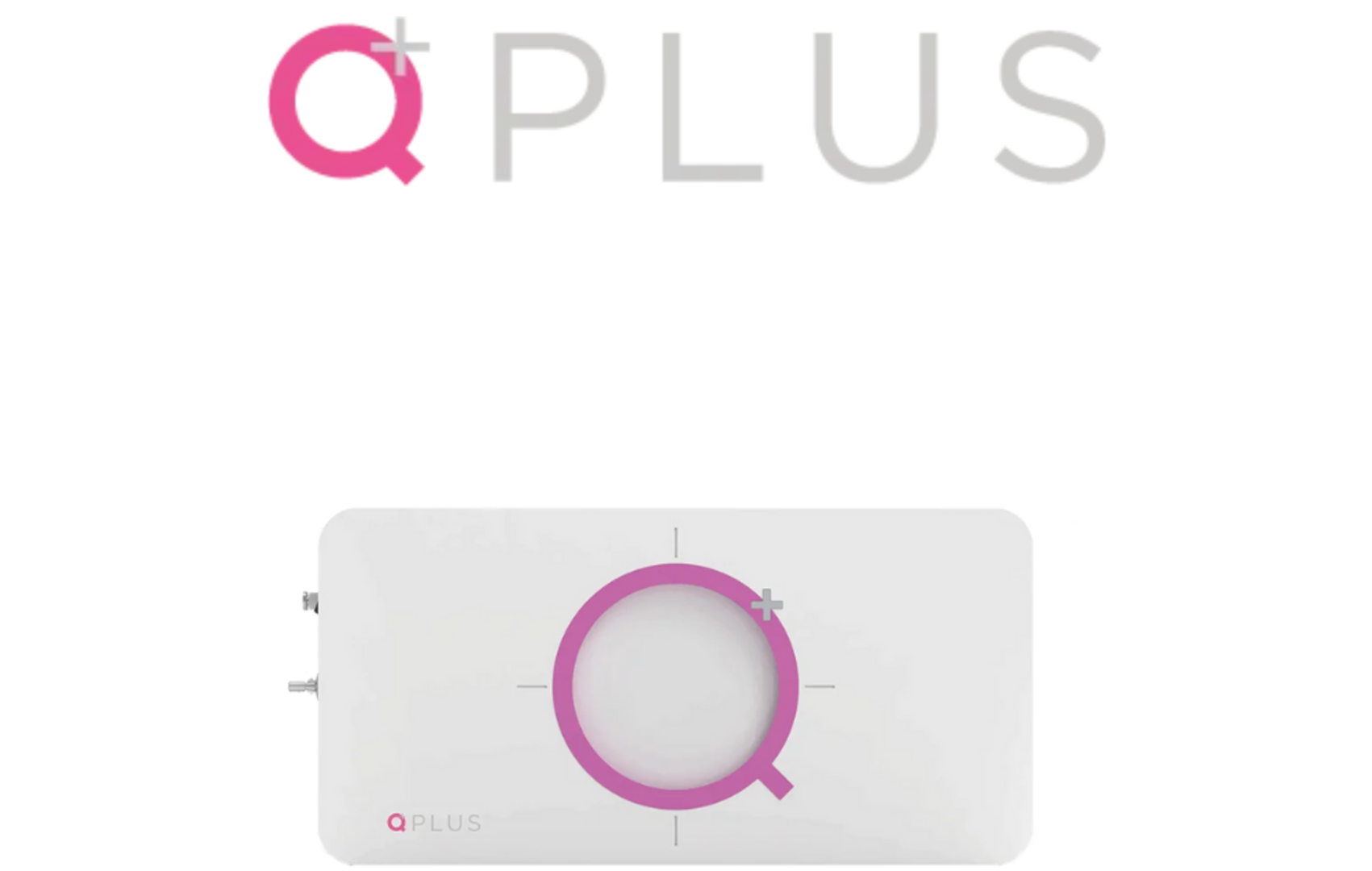

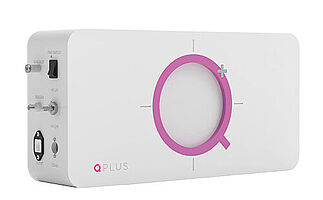

QPLUS

QPLUS is a detector to measure radiation characteristics in a single beam shot. It consists of a dots array to identify the beam center by measuring the particle flux.
The sensitive area is 38 mm x 38 mm (dots pitch 0.6 mm).

More information

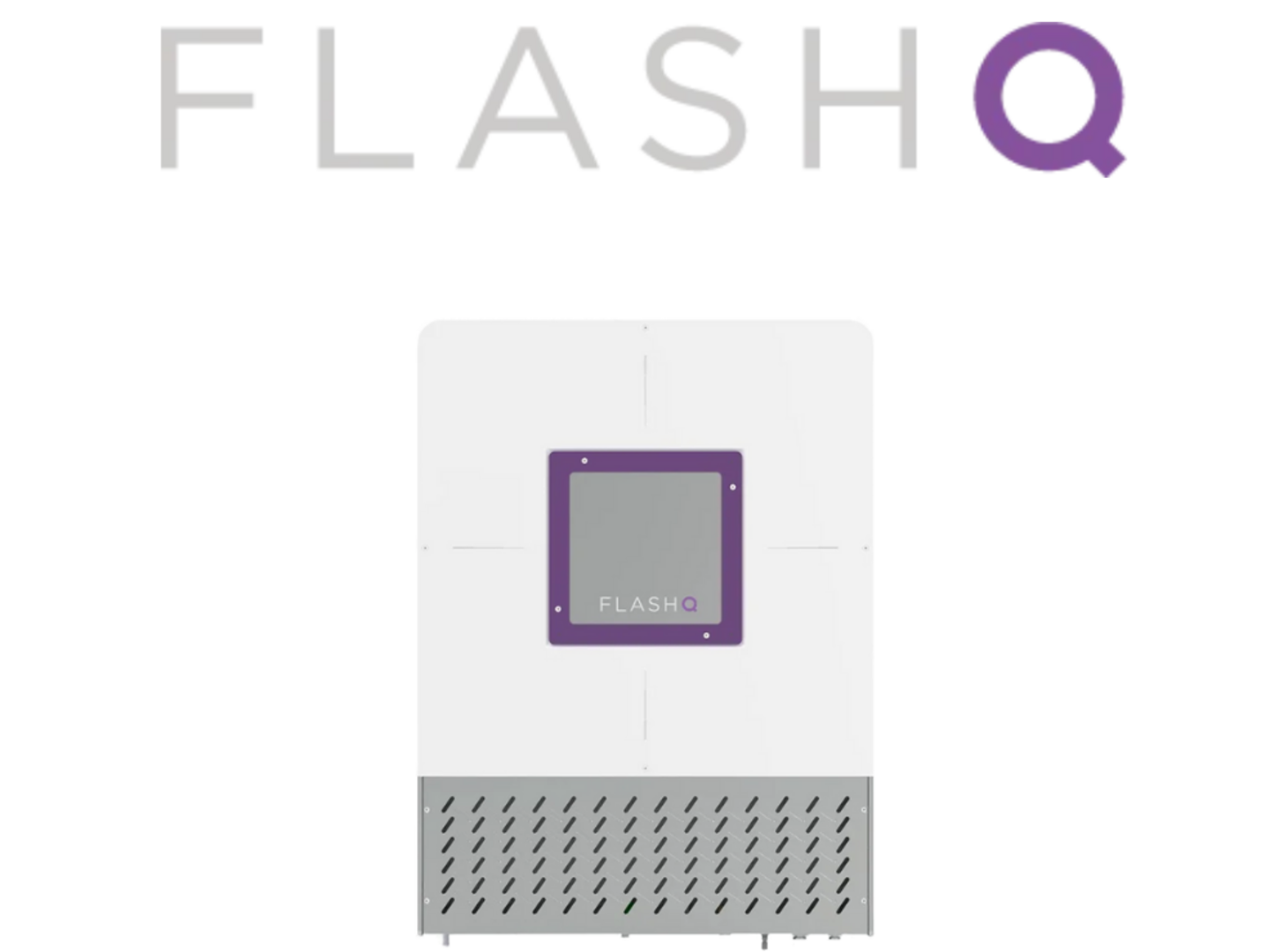

FLASHQ

FLASHQ is a device to measure beam characteristics (intensity and lateral profiles) during ultra-high dose rate machine QA.
The resolution is 1mm. The sensitive area is 128 mm x 128 mm.

More information
