Comprehensive Electron Density Phantom

For calibration of Hounsfield Unit (HU) vs. electron density of CT radiotherapy treatment plans in research studies and experimental setups

  • Calibration of radiation oncology treatment plans in research studies and experimental setups
  • Optimization of the delivered dose to the patient
  • Provides realistic tissue simulation and values within the higher density range (bones)
  • Further/multiple tissue-equivalent inserts are available upon request

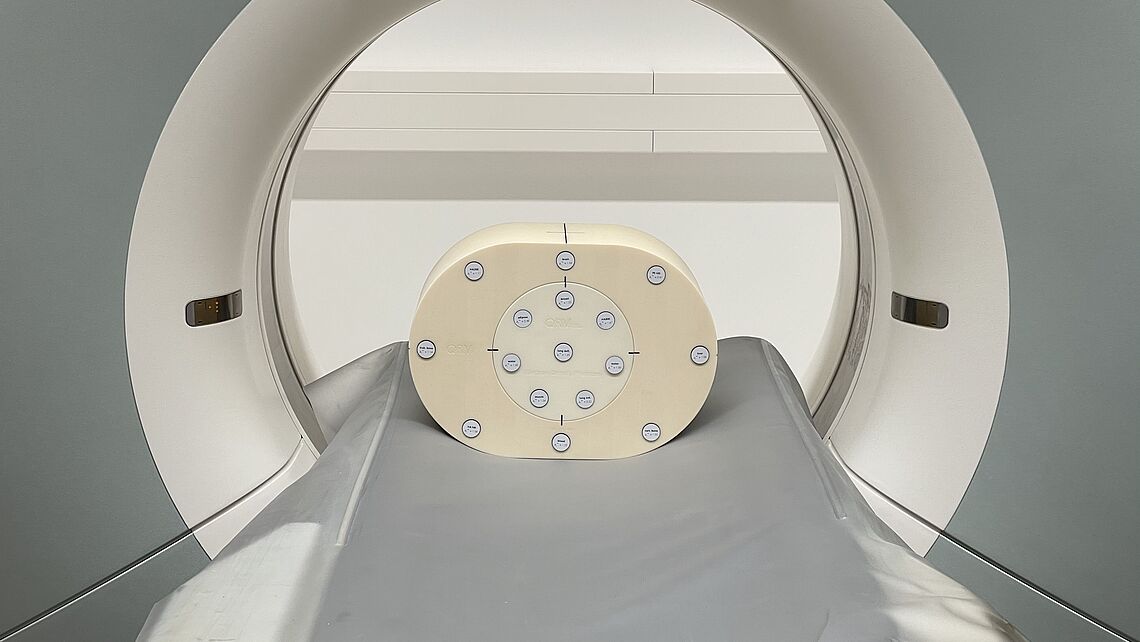

The phantom is a tool for the calibration of Hounsfield Unit (HU) versus electron density for radiotherapy treatment plans to optimize the dose delivered to the patient (CT/CBCT).

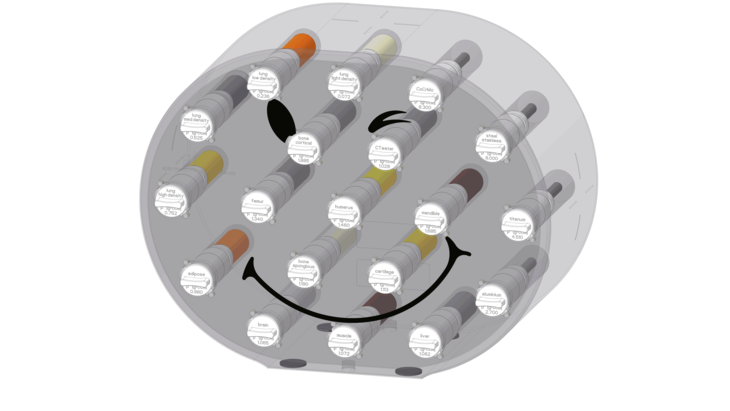

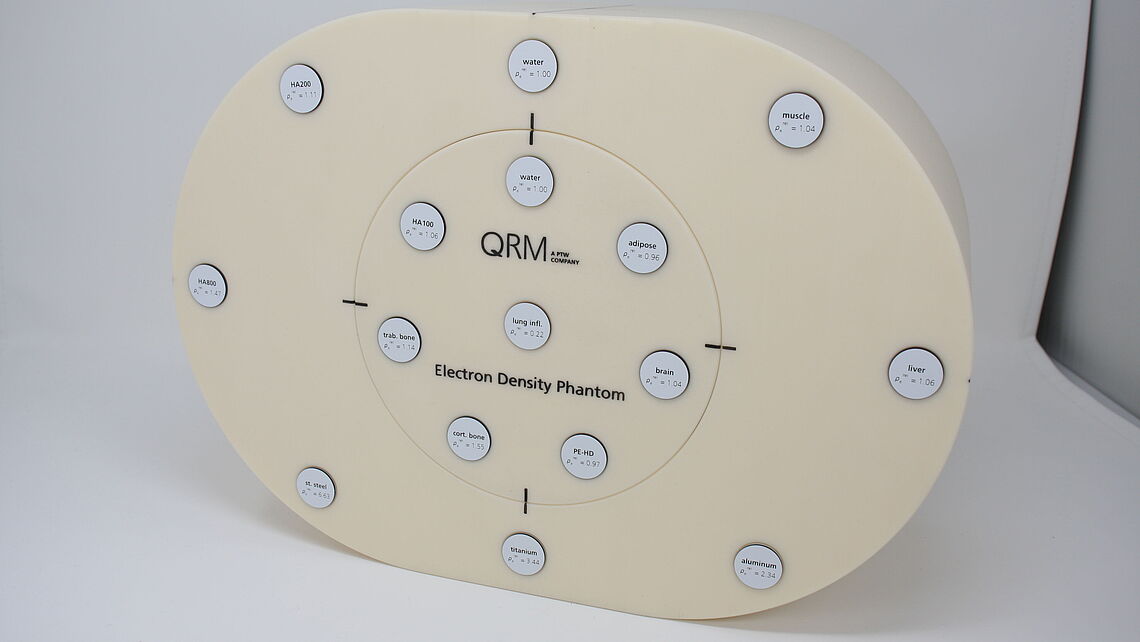

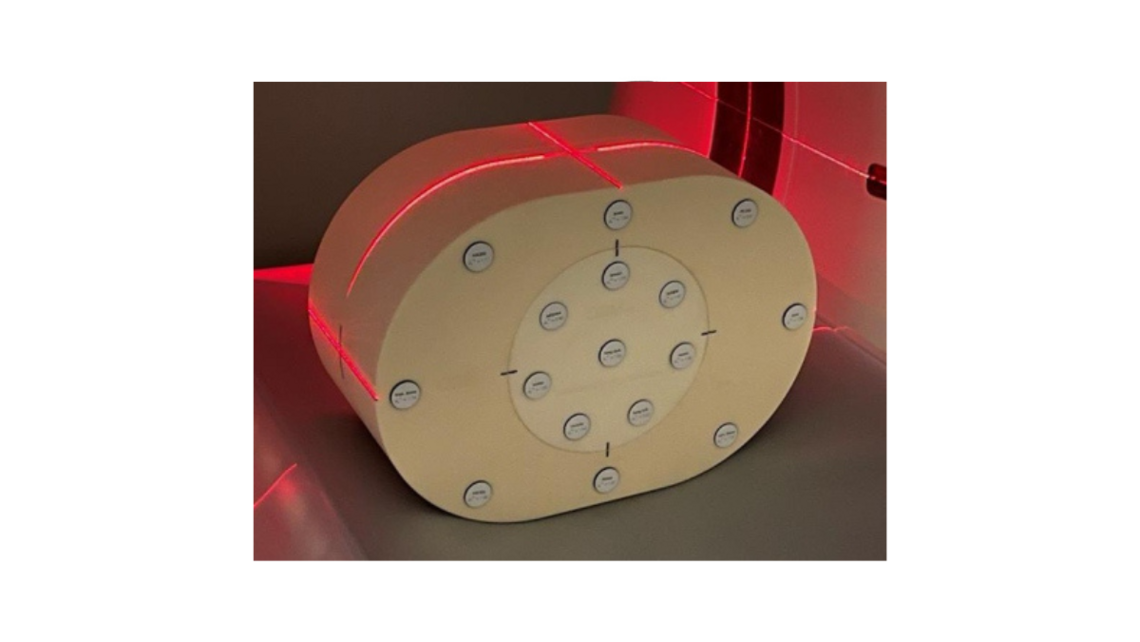

The Comprehensive EDP phantom is ideally suited for the creation of a HU-versus-the-electron-density table for treatment planning CT (4DCT). It consists of a water-equivalent body section and a removable/standalone head section within a total of 19 holes for exchangeable inserts. These mimic real human tissue regarding its physical and electron density in accordance with ICRU Reports 44 and 46. Remarkably, the phantom also provides realistic tissue in the higher-density range (bone).

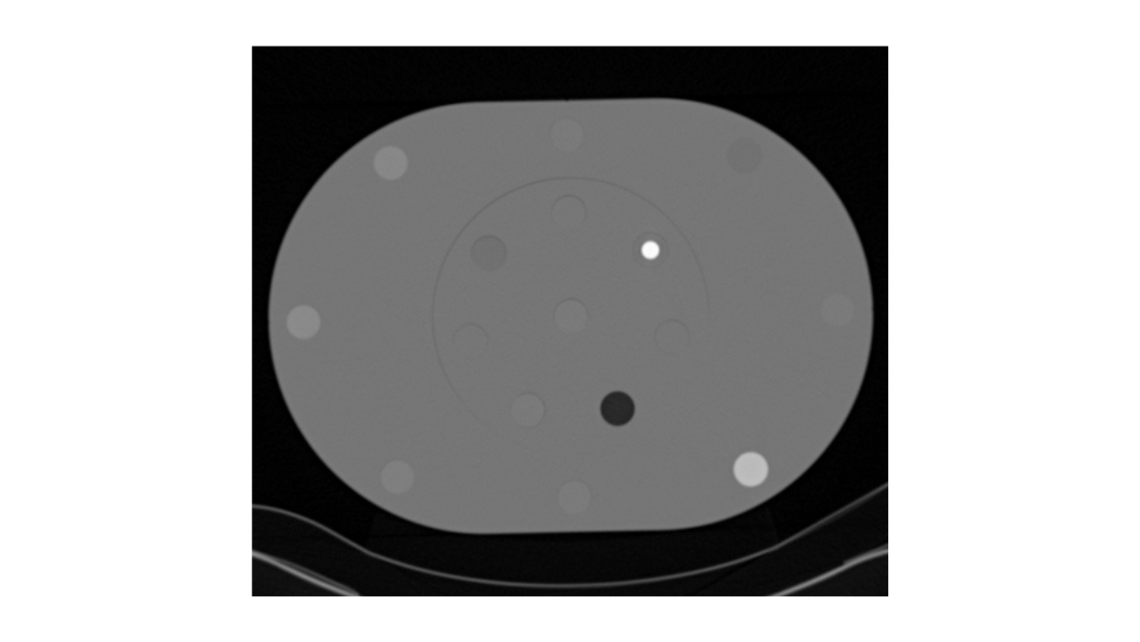

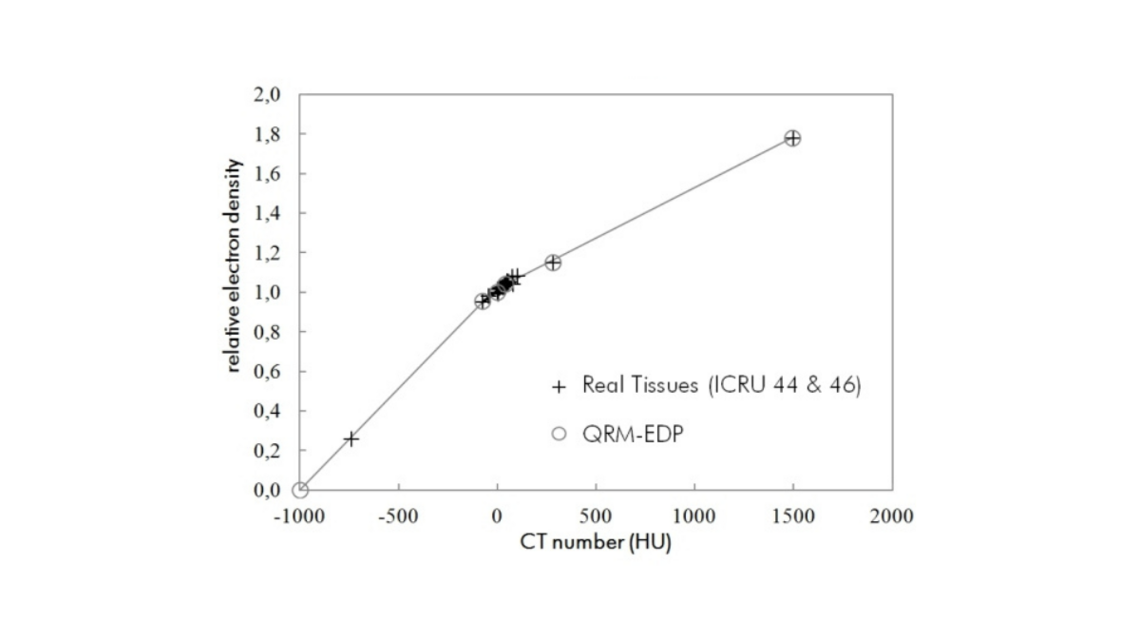

The phantom comes with a protocol displaying physical density, electron density, electron density relative to water and effective atomic number (other values are optional).

It is suitable for high energy ranges (MeV electron, photon, and proton therapy systems).

Technical Specifications

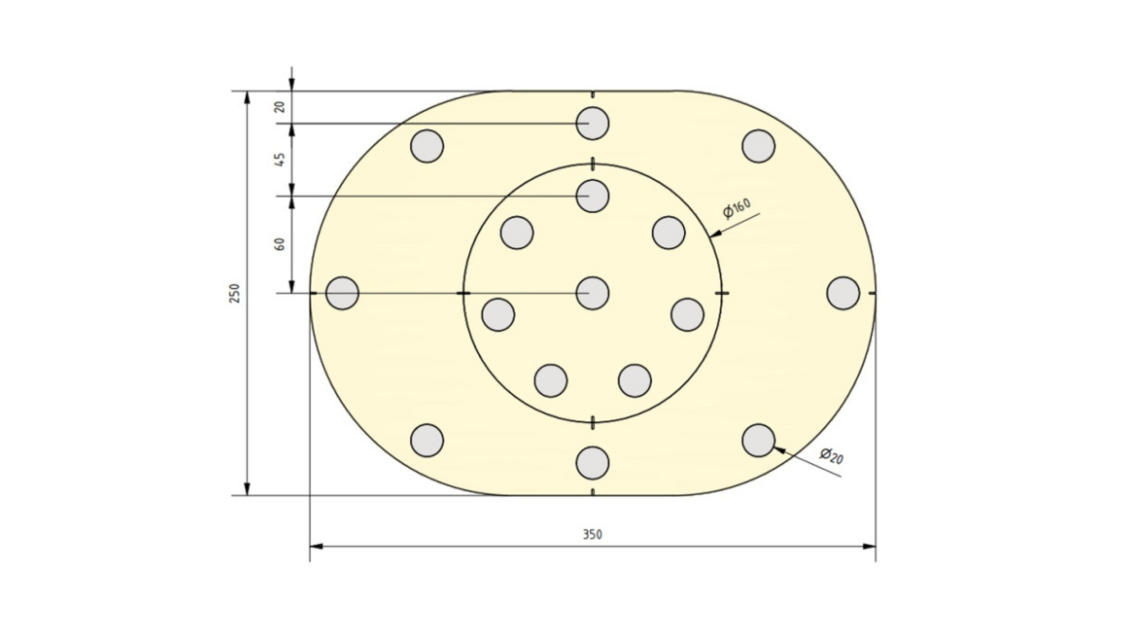

Body: Phantom dimension: 250 mm x 350 mm
  Phantom height: 125 mm
  Holes: 8 pcs., Ø 25 mm
Head insert: Phantom diameter: 160 mm
  Phantom height: 125 mm
  Holes: 10 pcs., Ø 25 mm
Body Material: Water-equivalent (CTwater, app. 0 HU ± 5 HU (at 80-140 kV)
Phantom weight: 11.0 kg
Tissue-equivalent rods: (Ø 25 mm, height 125 mm)

*Accuracy ± 5 HU of specified values.

CTWater (5 pcs.)
ICRU Lung I (inflated)
Lung II
Lung III
ICRU Adipose
ICRU Breast (50/50)
ICRU Brain
ICRU Muscle
ICRU Liver
ICRU Cartilage
ICRU Skeleton-Spongiosa
ICRU Skeleton-Femur
ICRU Skeleton-Humerus
ICRU Skeleton-Mandible
ICRU Skeleton-Cortical Bone

Image Gallery

Related Downloads

Spec
Comprehensive Electron Density Phantom ( 61 MB )
