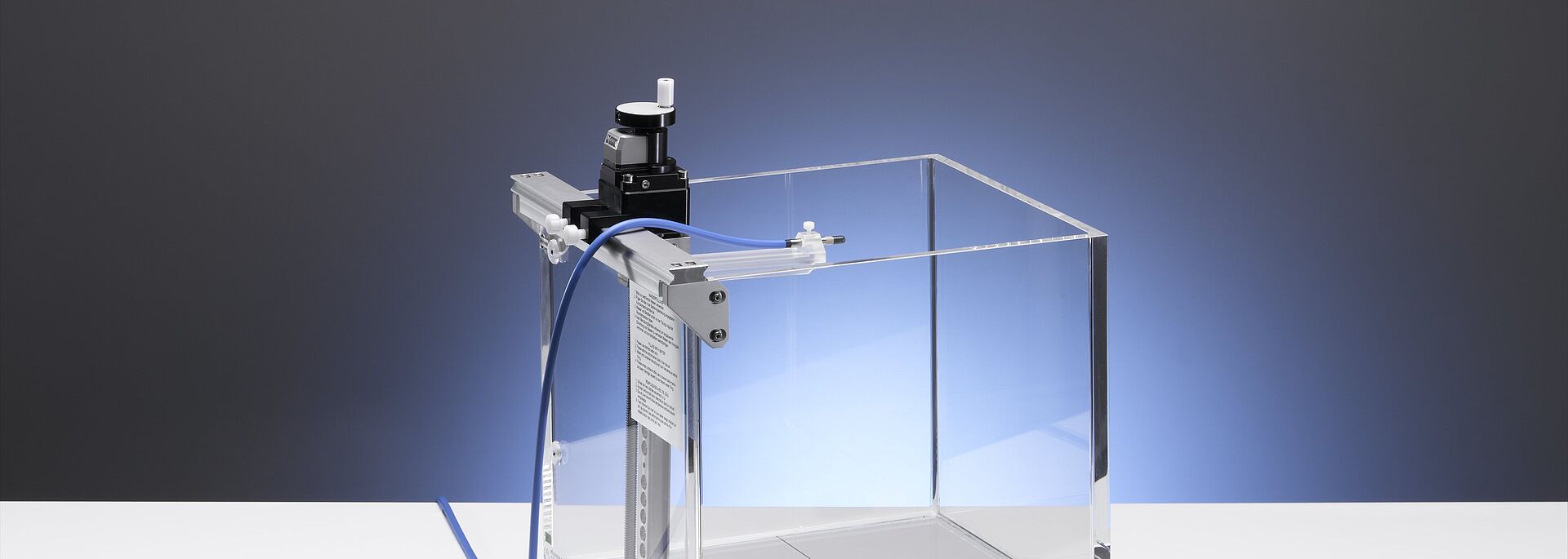

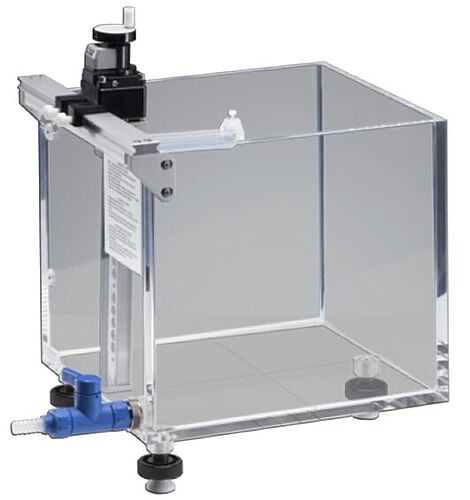

MP1 Manual MR Water Phantom

The MP1 Manual MR is a one-dimensional water phantom to measure dose in different depths.

A radiation detector can be positioned in the waterfilled phantom using a manually driven 1D moving mechanism. The measuring signal of the radiation detector is read out with an electrometer.

Total dimensions: 350 mm x 482 mm x 514 mm ± 5 mm
Weight: approx. 9.5 kg (with moving mechanism, without water filling)
Max. water quantity: 32 l
Range for horizontal adjustment: 240 mm
Vertical moving range: 254 mm
Reproducibility: 0.1 mm
MR-condtional: yes
