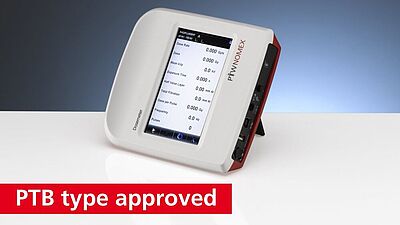

NOMEX Dosemeter

OVERVIEW

  • CE marked, class IIb certified diagnostic dosimetry system, fully compliant with IEC 61674 for acceptance testing and quality control measurements on RAD, FLU, DENT, CT and MAM X-ray modalities
  • Field-class electrometer acc. to IEC 60731 for air kerma measurements in radiotherapy and orthovoltage therapy
  • Outstanding accuracy (± 2%) and excellent resolution (20 fA)
  • Connection of semiconductor detectors  or ion chambers or of the NOMEX® Multimeter

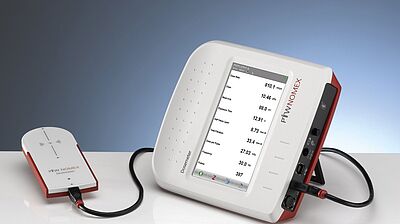

  • Combined with the NOMEX Multimeter and/or NOMEX mAs all relevant QC parameters can be captured in one single shot
  • Automatic air density correction when using ion chambers
  • Waveform display and storage of last 100 measurements
  • Allows data and waveform export as XLS, XML or CSV file via USB or  Bluetooth®
  • Operation menu in multiple languages (Chin./Eng./Fren./Ger./Ital./Jap./Port./Russ./Span.)
  • Convenient firmware updates on-site
  • 100% precision

Outstanding Precision and Excellent Resolution: The NOMEX® Dosemeter comes electrically calibrated with an intrinsic error of max. ± 2%. Measuring results of highest accuracy and of a superior reading resolution (20 fA) are guaranteed.



  • 100% ease of use

Connect the detector of choice (usage of already available PTW diagnostic detectors!), position the detector and start the measurement.



  • Sophisticated Warning and Error Management

NOMEX® displays when a measurement is inaccurate and suggests what to change within the settings or the measurement setup.



  • Time-Saving, Straightforward and Cost-Effective Service and Calibration Workflows

Firmware updates can be easily performed via USB connection to a PC. No need to return the device to the manufacturer. PTW devices are worldwide well-known for their reliability, reproducibility and long-term stability. A recalibration is recommended only every 2 years.

  • Individual sets for every X-ray modality available: Different NOMEX sets with or without the NOMEX Multimeter and each with or without mAs option are available!
  • Service contract for NOMEX® Dosemeter (Bronze, Silver, Gold)

Accessories

Each package is available with or without mAs option:

  • NOMEX Dosemeter
  • NOMEX set all-in R/F/MAM/DENT/CT
  • NOMEX set R/F/MAM
  • NOMEX set R/F
  • NOMEX set MAM
  • NOMEX set DENT
  • NOMEX set CT

Semiconductor detectors

Ionization chambers

Current clamp for NOMEX mAs (non-invasive measurement)

Specifications

Current Resolution 2 pA ... 23 µA, < ± 2% ± 20 fA
Charge Resolution 2 pC ... 230 mC, < ± 2% ± 10 fC
Irradiation time 1 ms ... 298 h, ± 1 ms
Pulses 0 ...99999, ± 1 pulse
Frequency (0.2 ... 500) Hz
Temperature (10 ... 40) °C ± 0.1 °C
Pressure (750 ... 1100) hPa ± 0.1 hPa
Dimensions (HxWxD) 160 mm x 150 mm x 40 mm
Weight 550 g incl. rechargeable batteries
Interfaces USB V2.0 High-Speed, Bluetooth® 2.1 + EDR

Measuring range depending on the detector connected

NOMEX Multimeter

Air kerma rate 40 nGy/s ... 460 mGy/s
Air kerma 40 nGy ... 4.6 kGy
Resolution 0.4 nGy/s
Energy dependence ≤± 5%
Air kerma rate 130 nGy/s ... 1.5 Gy/s
Air kerma 130 nGy ... 15 kGy
Resolution 1.3 nGy
Energy dependence ≤± 5%
Air kerma rate 140 µGy*cm/s ... 1.6 kGy*cm/s
Air kerma 140 µGy*cm ... 16 MGy*cm
Resolution 1.4 µGy*cm/s
Energy dependence ≤± 5%
