RUBY

The New Modular QA Phantom

SYSTEM QA • LINAC QA • PATIENT QA

The phantom that fits your changing needs.

Perform integrated tests of the entire treatment chain from imaging to treatment planning and verification with one basic phantom. Add and expand QA capabilities when needed.

As the new modular phantom platform for radiotherapy QA, RUBY comes with a variety of exchangeable, application-specific inserts that satisfy all test requirements in a modern treatment facility.

One Phantom. All Tasks.

With its unique combination of a compact, easy-to-setup base phantom and highly versatile test inserts, RUBY provides you with a simple, yet comprehensive solution that helps you evaluate the entire radiotherapy treatment process.

Its scalable, modular design makes it easy for you to stay flexible and add new inserts any time. Customize Ruby to your specific needs.

Choose your insert and start testing.

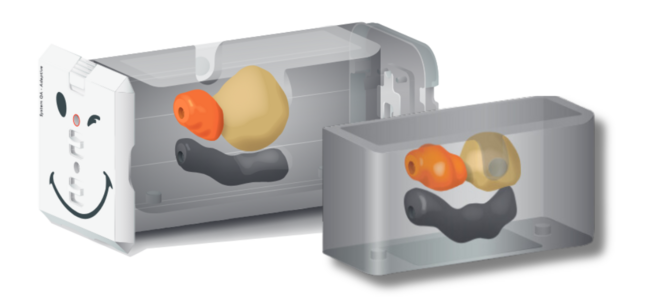

RUBY Inserts

System QA

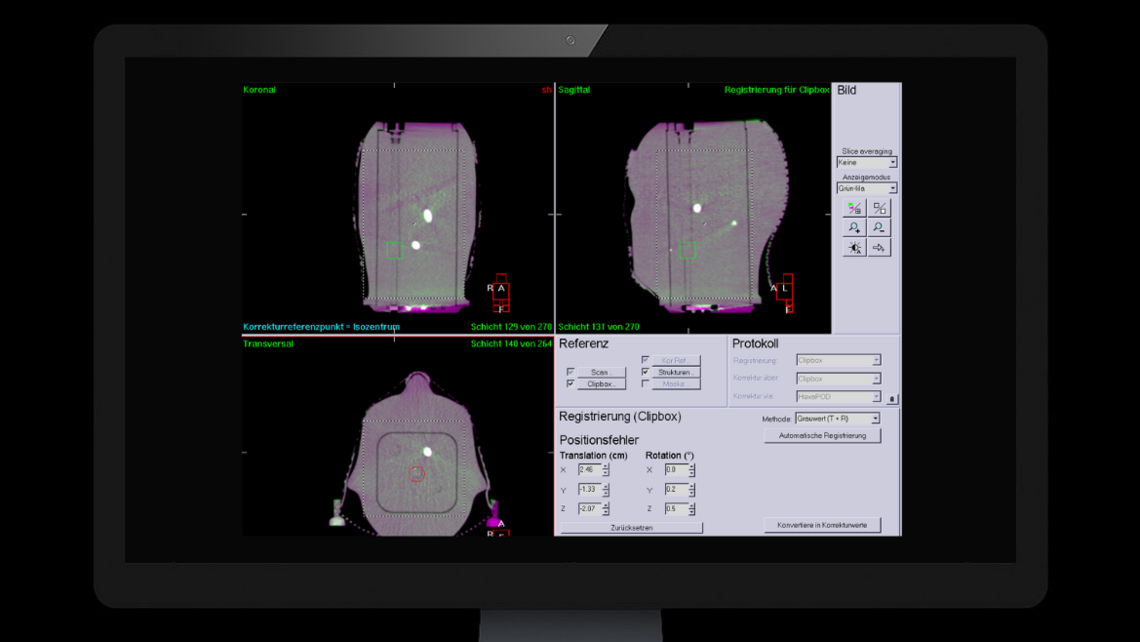

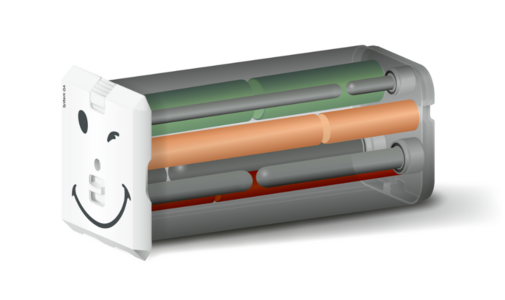

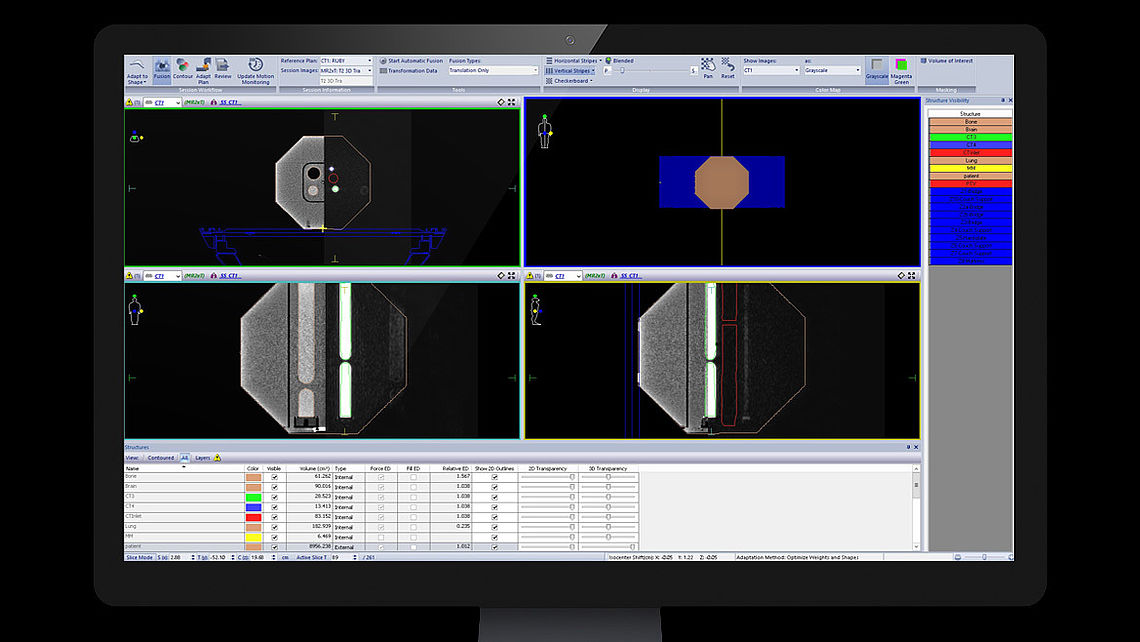

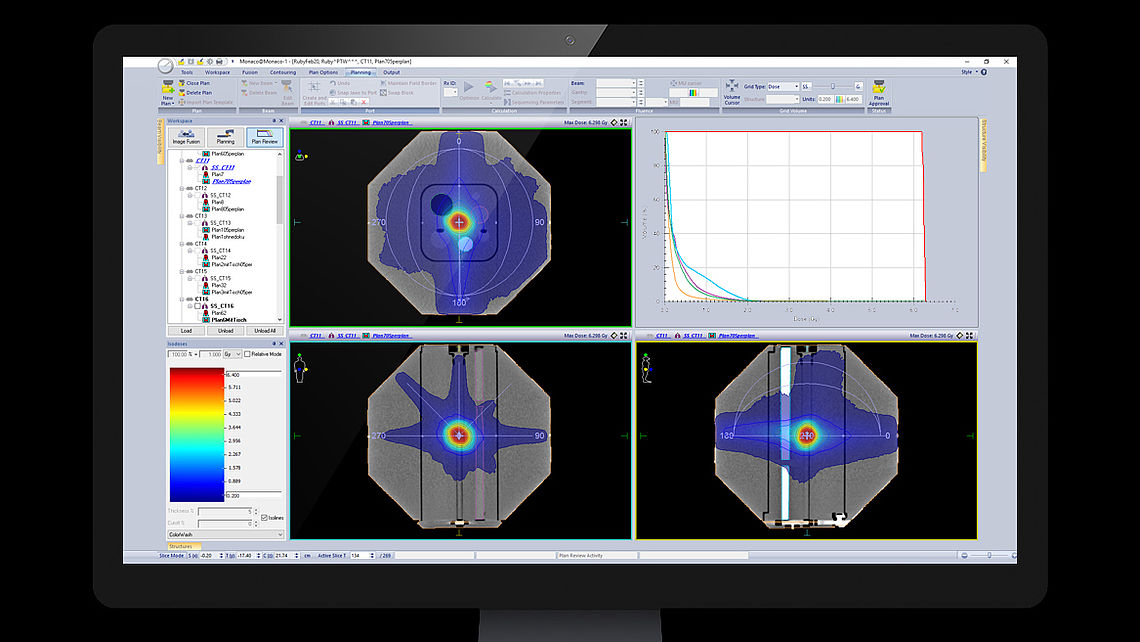

Choose the “End-to-End Test” insert for comprehensive end-to-end testing with one single insert.

Key Features

  • MRI visibility in all commonly used sequences (T1, T2 and FLAIR at 1.5 T) – no additional components required
  • ICRU-based tissue-equivalent materials (brain, lung, bone) for enhanced CT visibility

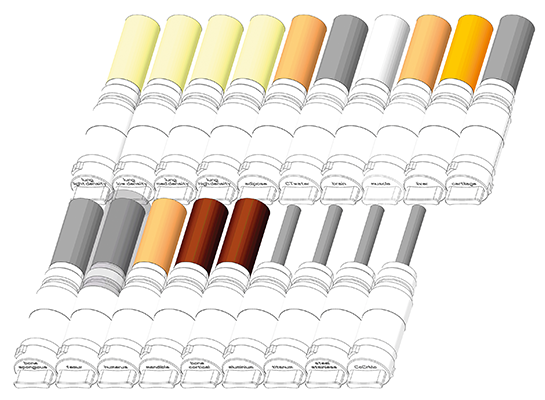

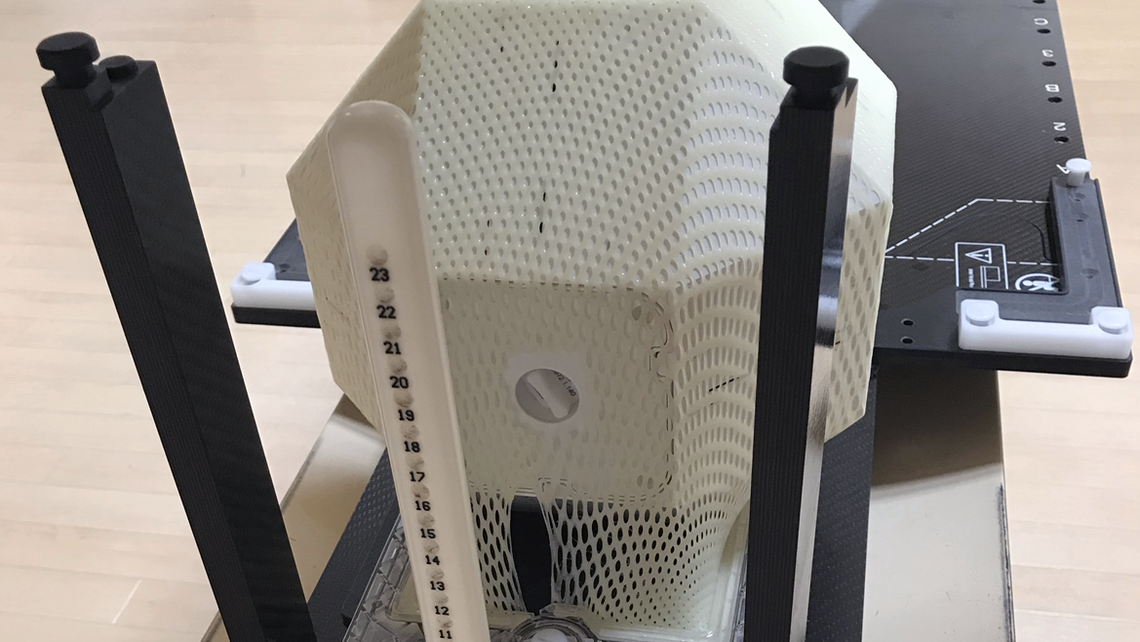

  • Compatible with patient positioning systems and patient masks

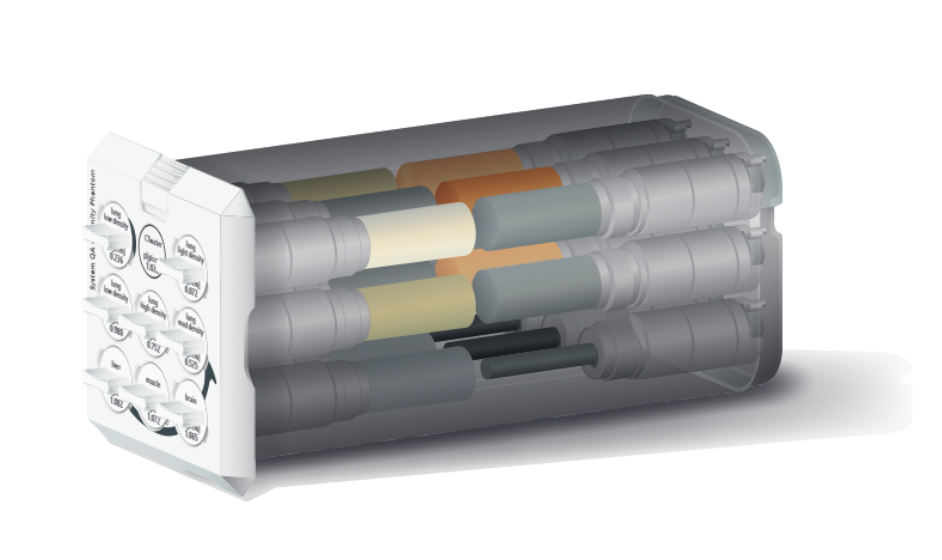

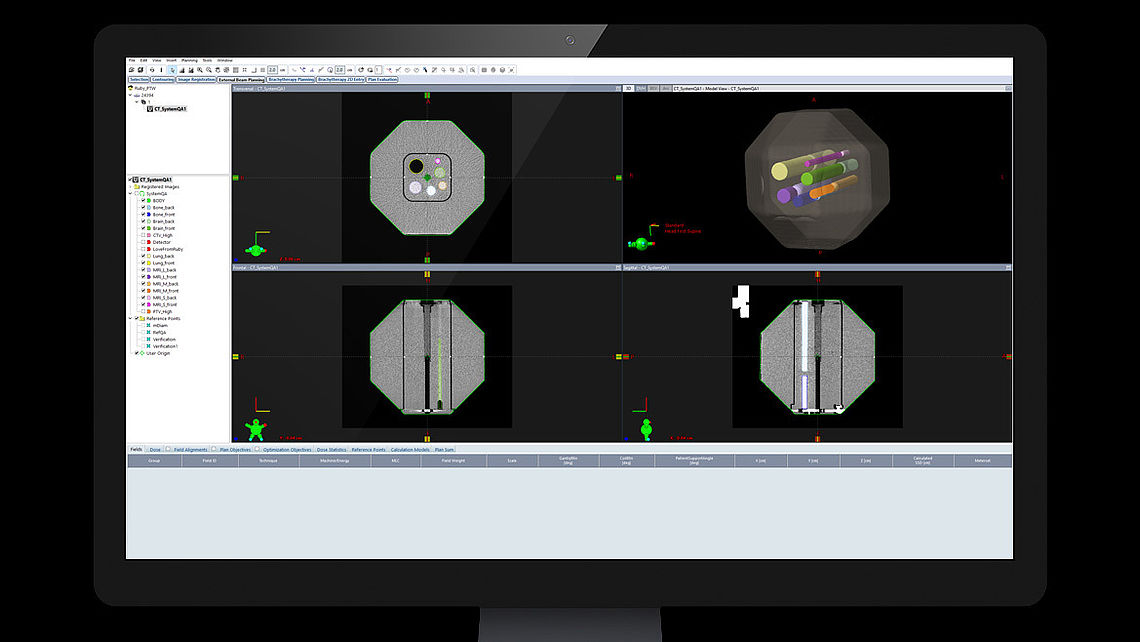

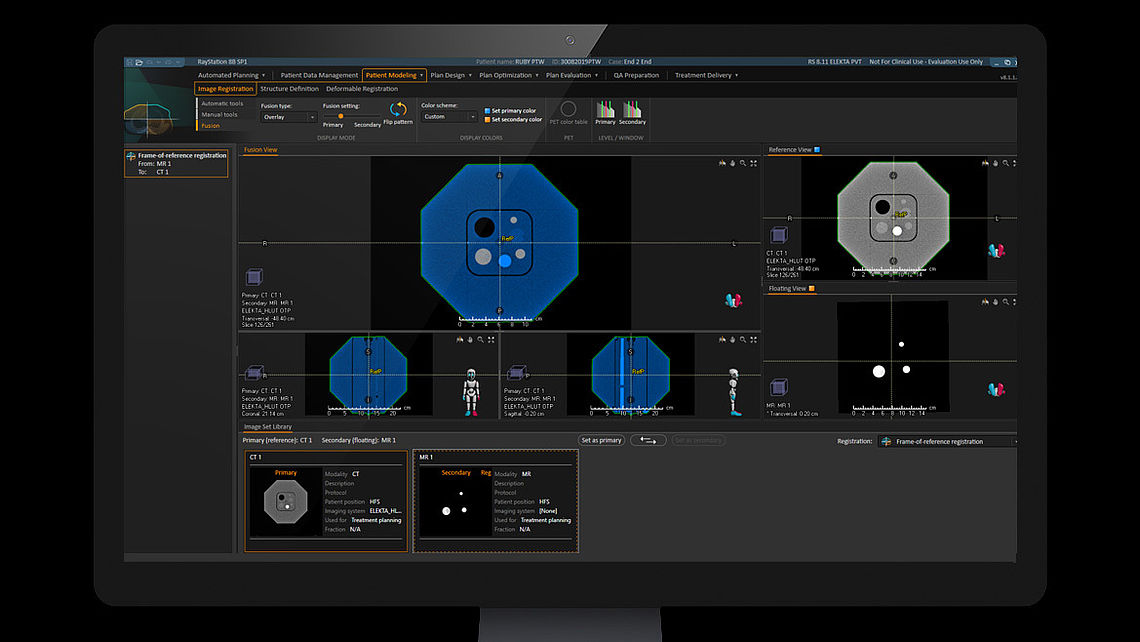

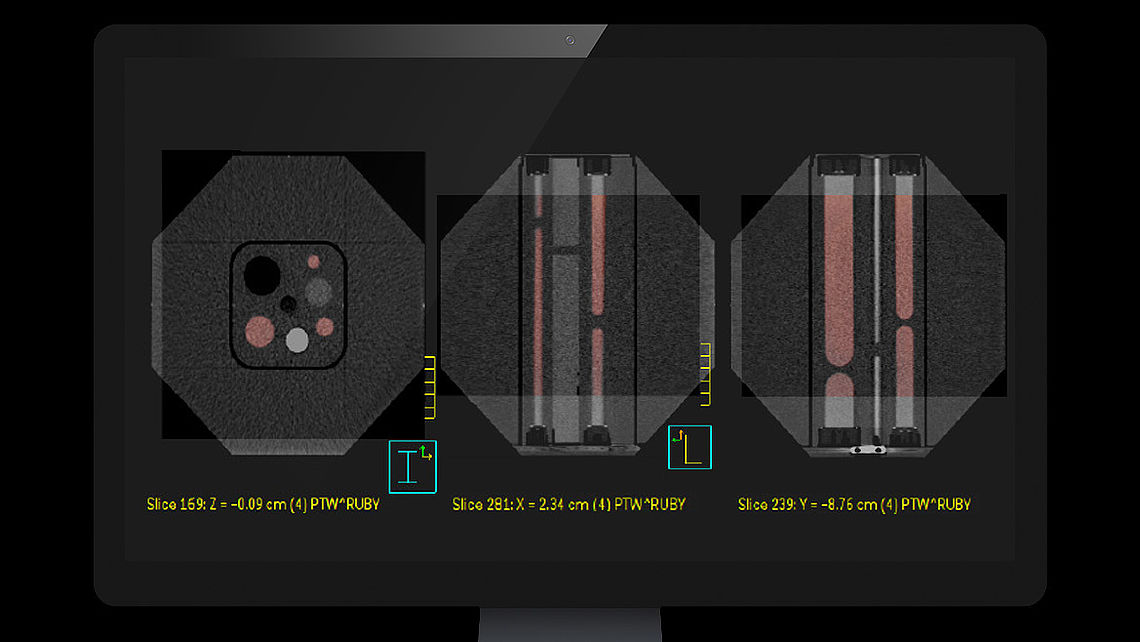

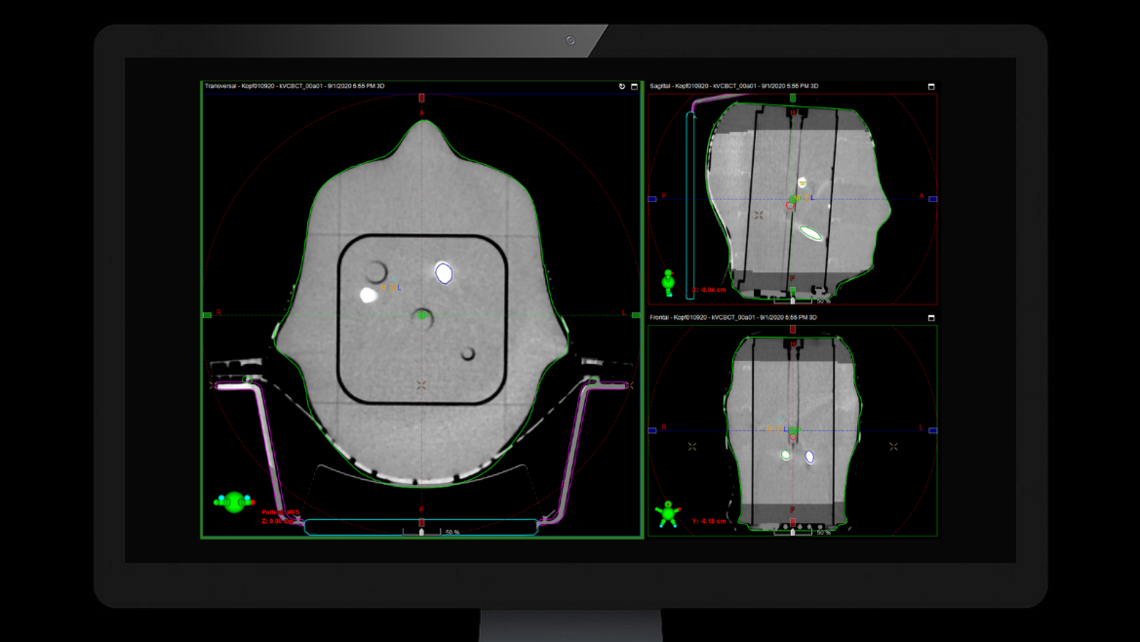

  • CT and MRI cavities for accurate verification of the CT/MRI image fusion algorithm of treatment planning systems
  • Point dose measurements with different detector types using the same insert

LINAC QA

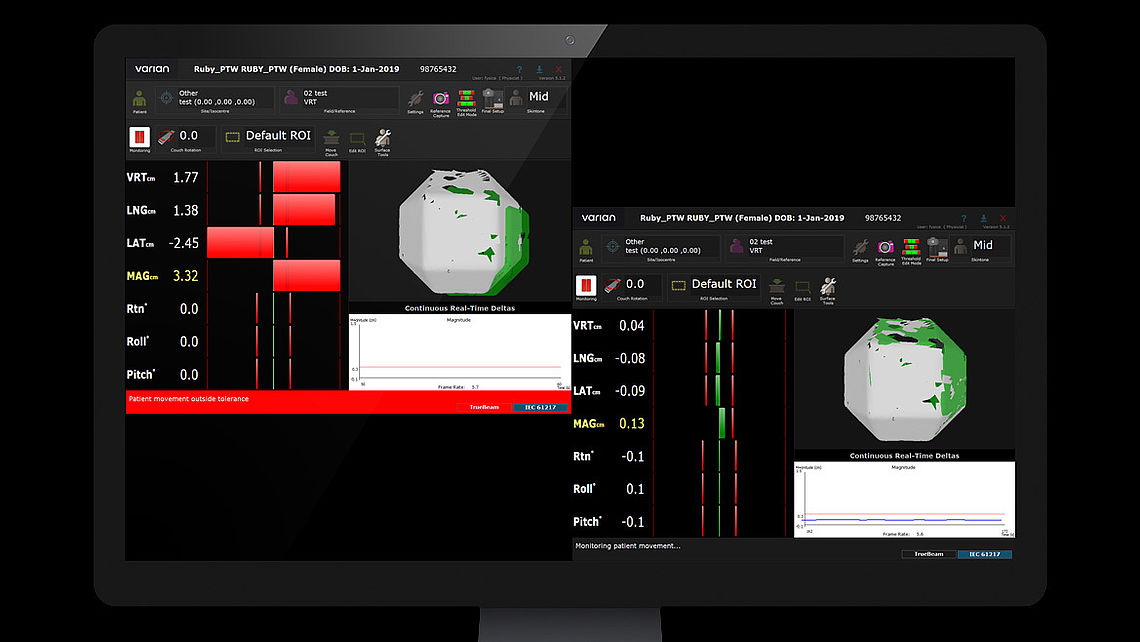

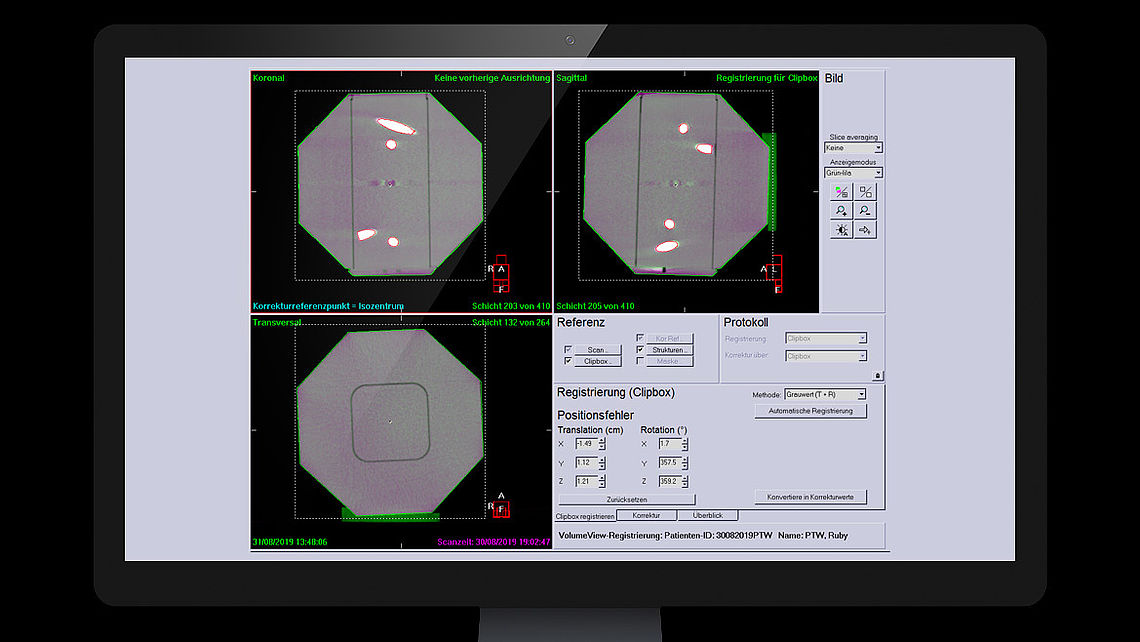

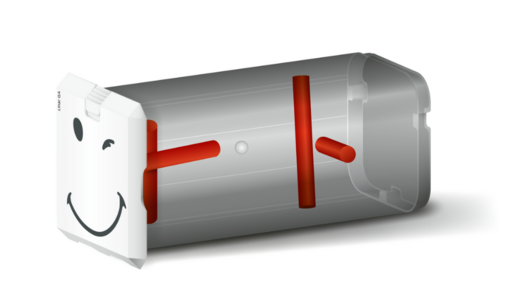

Perform alignment checks of the entire system, including conventional as well as 6D couches, with the “Alignment/Isocenter Check” insert.

Key Features

  • System alignment and isocenter checks  with one single insert

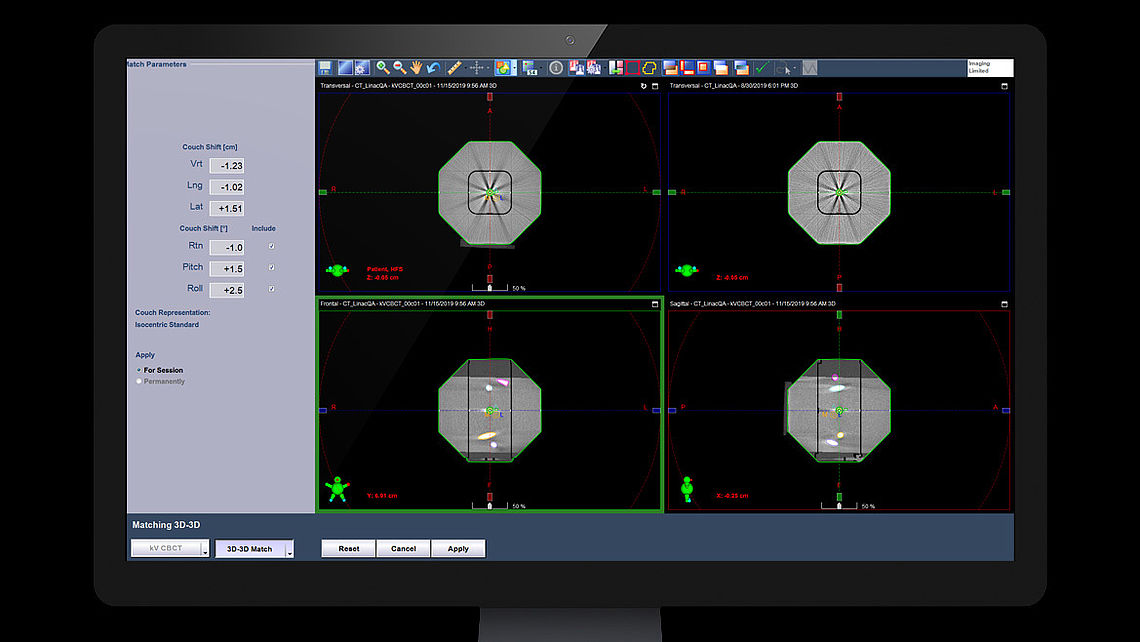

  • Daily checks of IGRT positioning accuracy as recommended in  AAPM TG-179 and TG-142

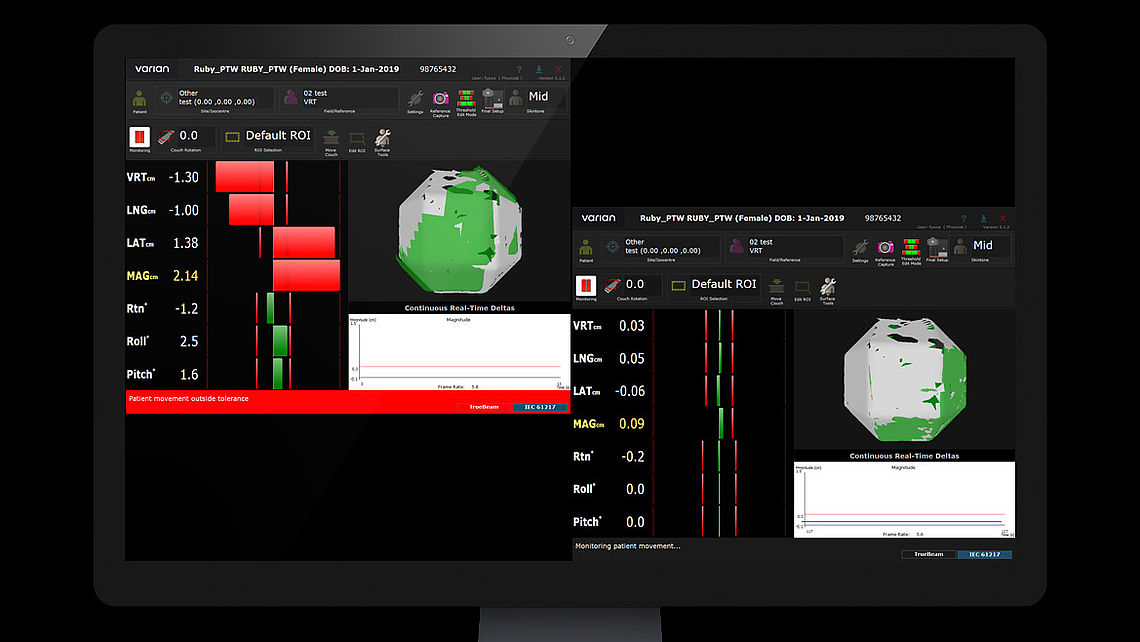

  • Optional tilting base for 6D couch QA

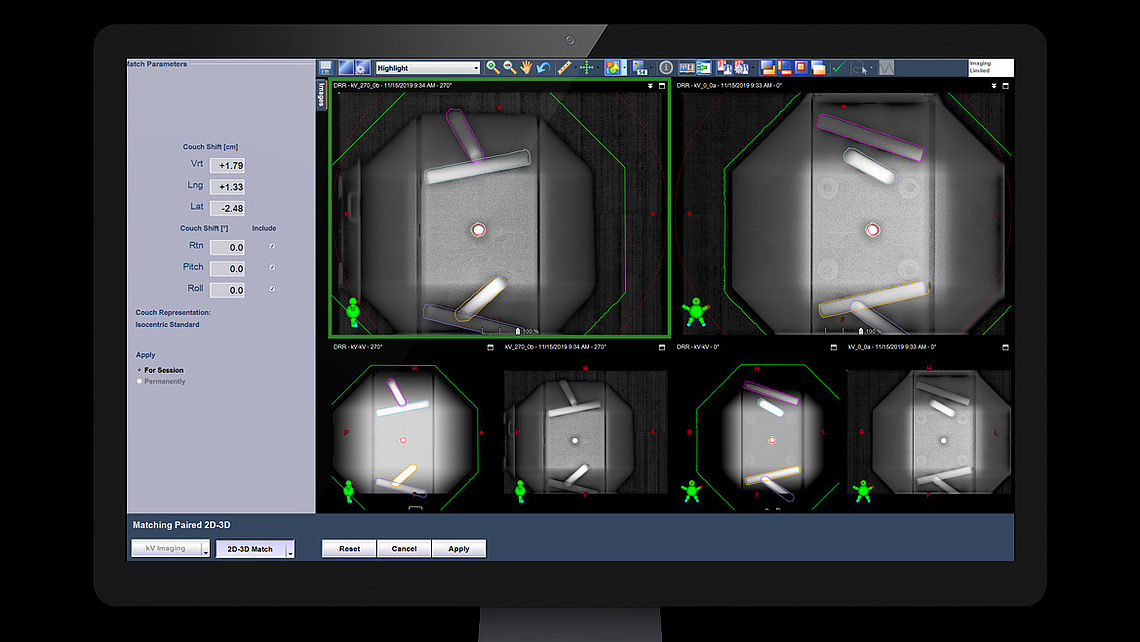

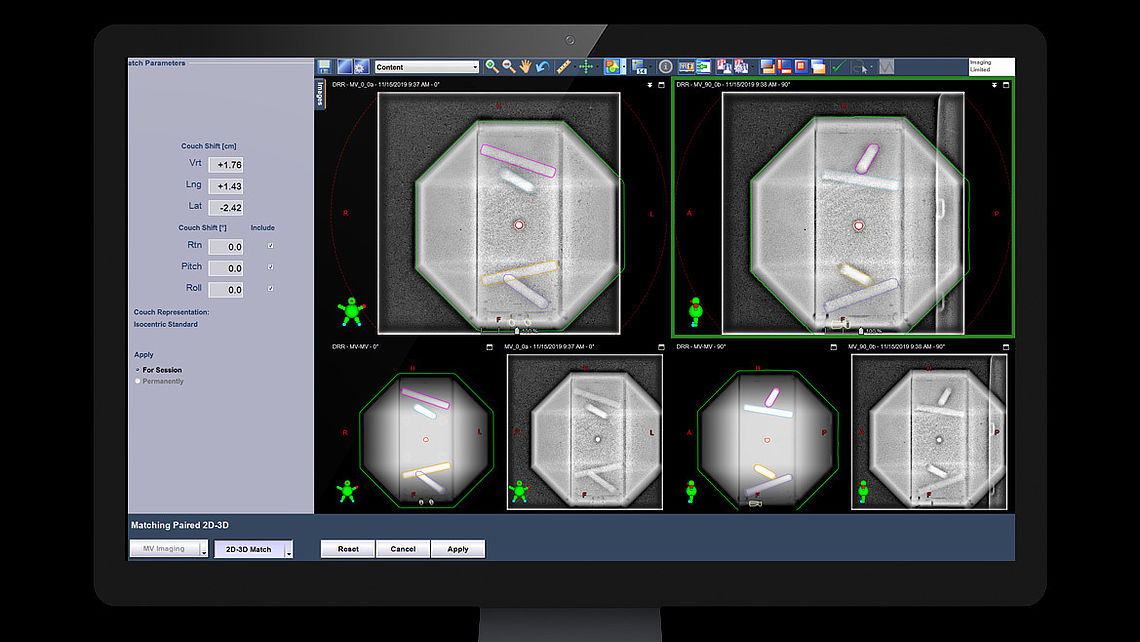

  • Tissue-equivalent bone structures for enhanced visibility in kV and MV images
  • High-density radiopaque sphere at isocenter for easy Winston-Lutz testing
  • Automated analysis of EPID images with optional PTW  IsoCheck epid  software
  • Integrated with Track-it

Patient QA

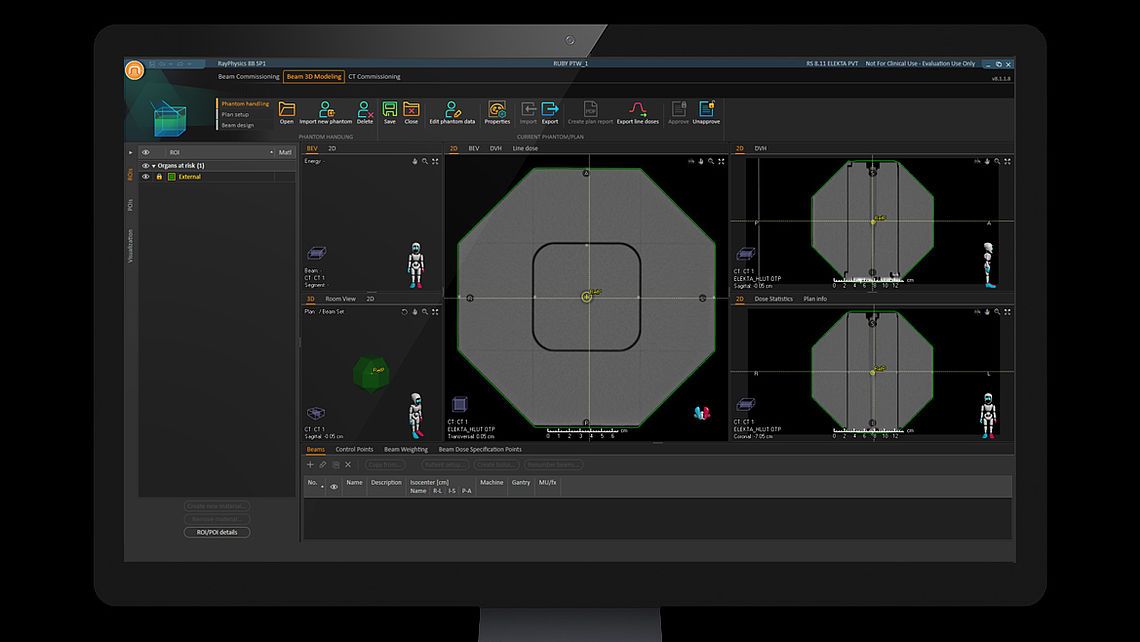

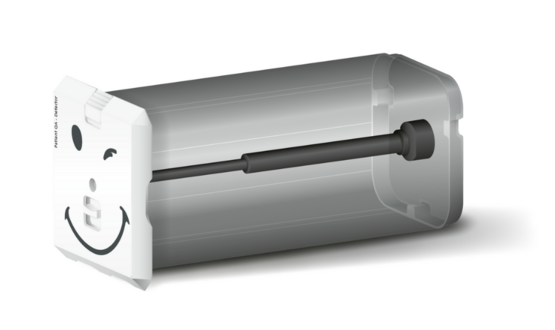

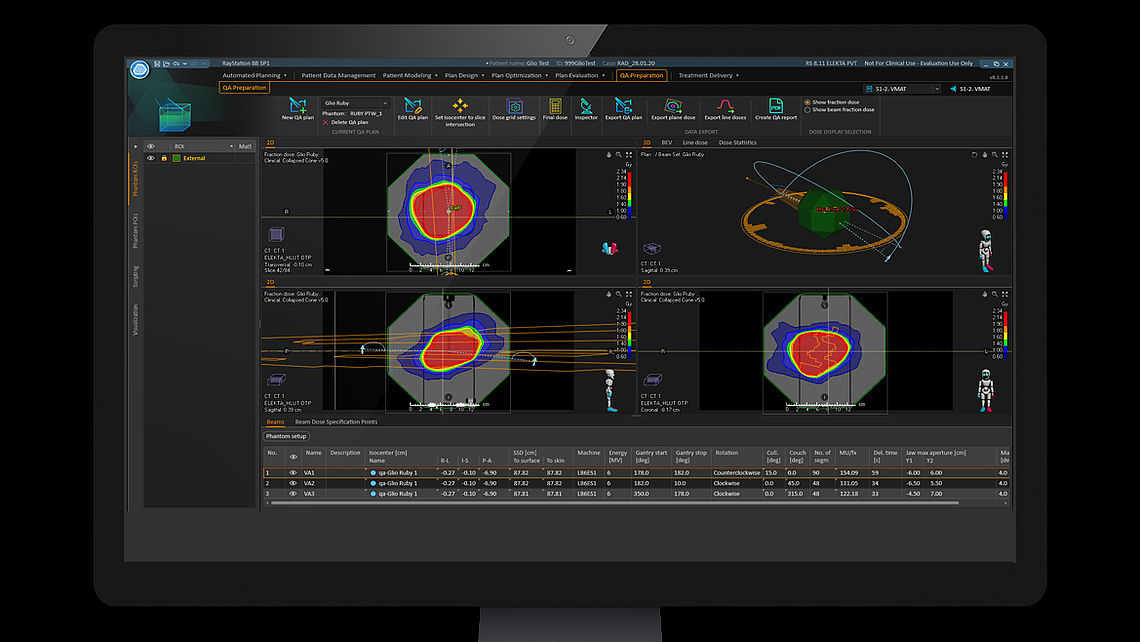

Select the “Detector” insert for measurement-based dose verification of patient treatment plans.

Key Features

  • Fast, accurate point dose measurements with different detector types
  • “Plug and Measure” convenience using detector  holders – no need to replace phantom or exchange inserts
  • Dose verification of non-coplanar treatment plans

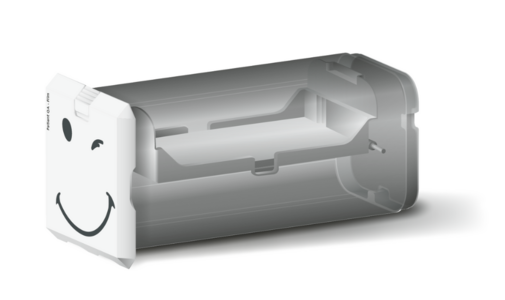

Use the “Film” insert for high-resolution dose distribution measurements in a plane using radiochromic films.

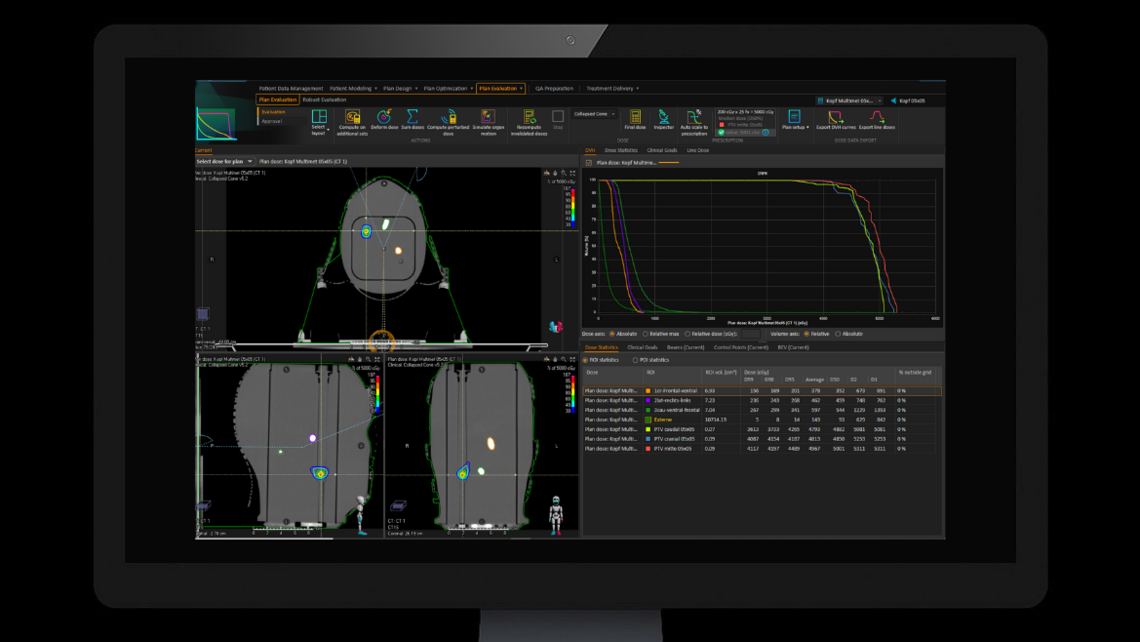

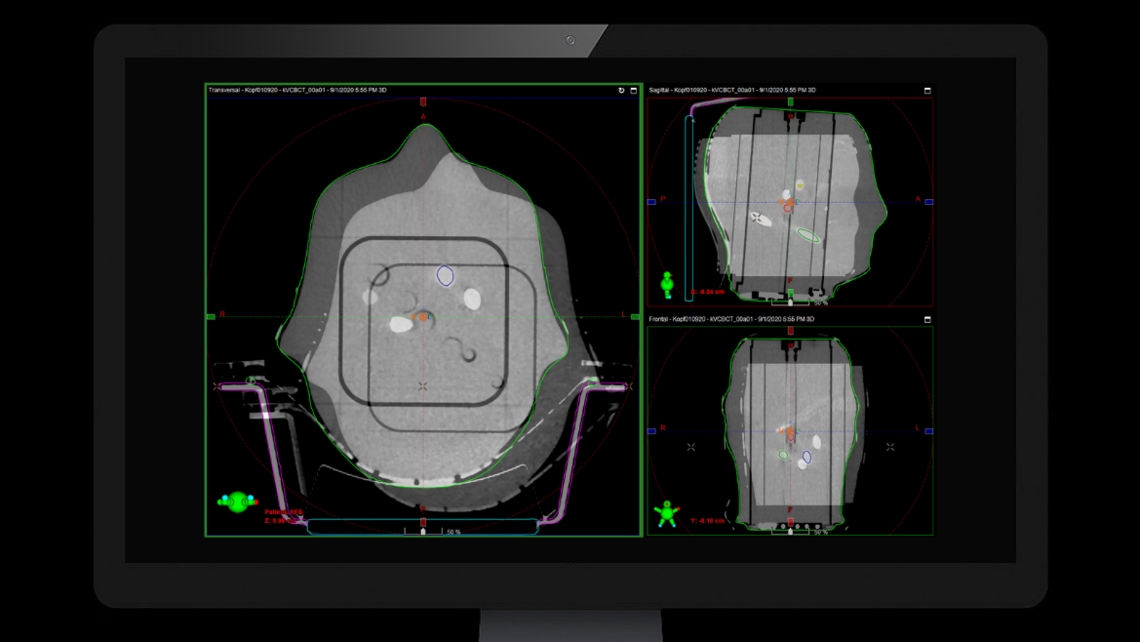

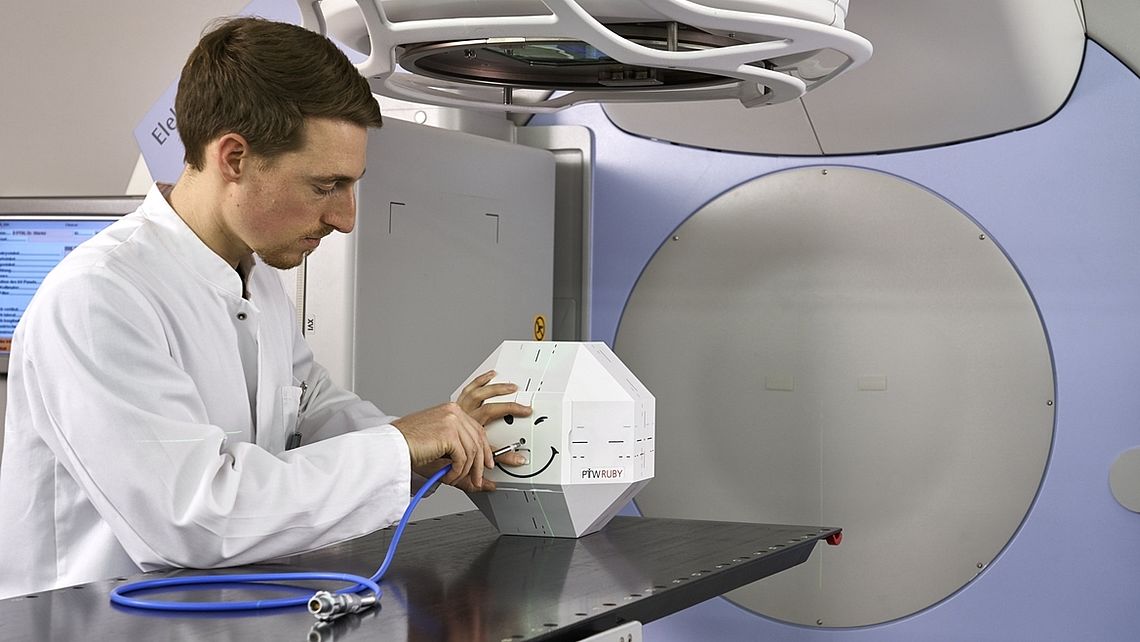

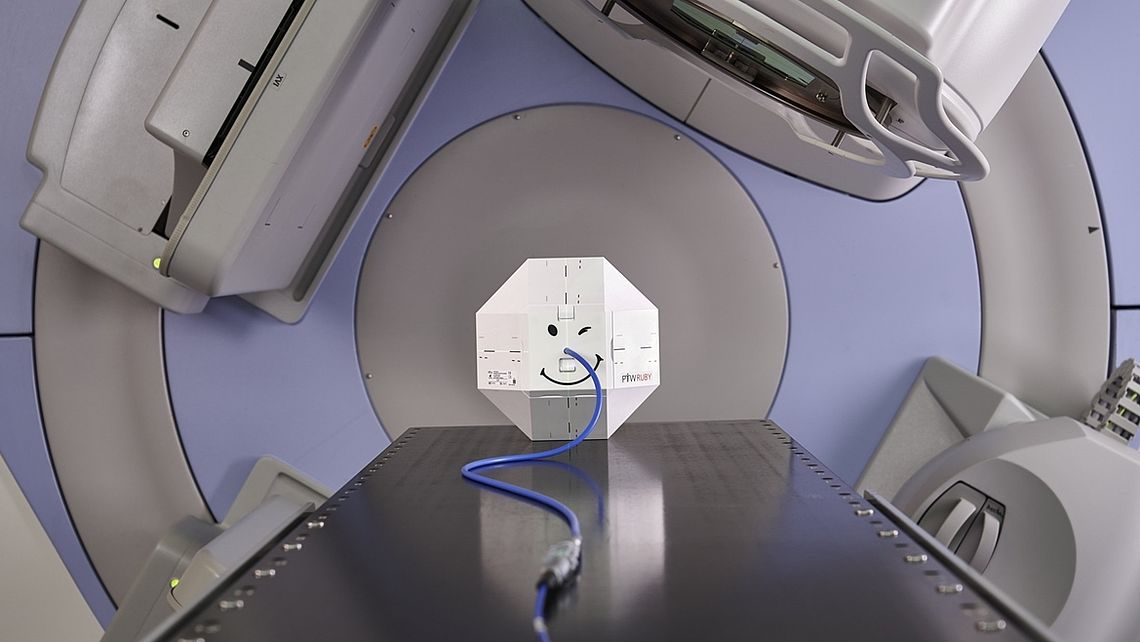

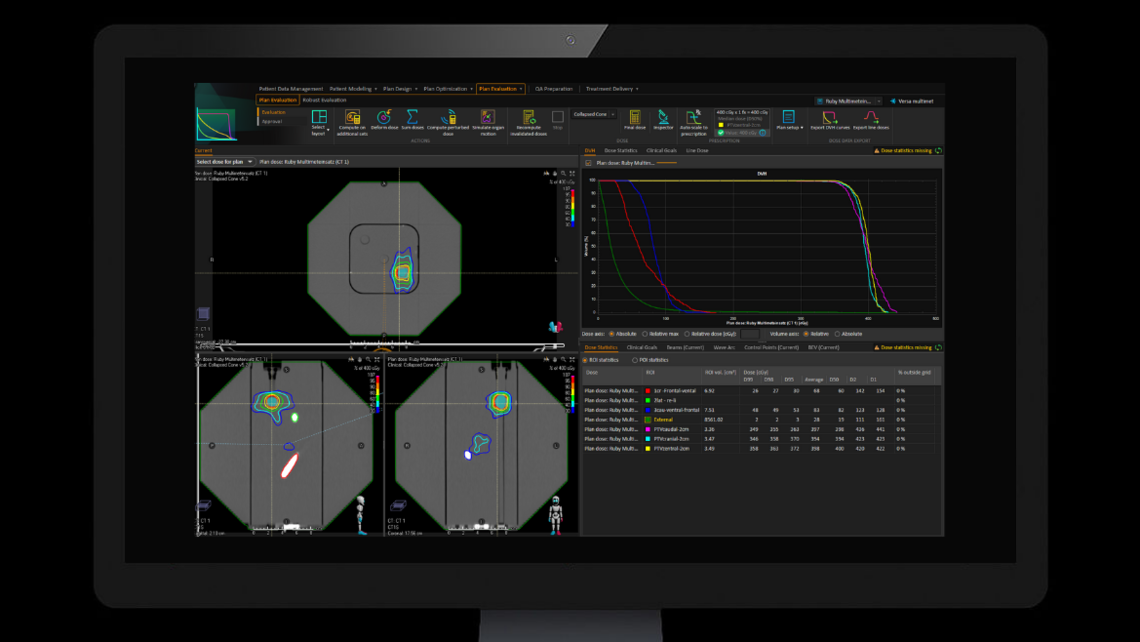

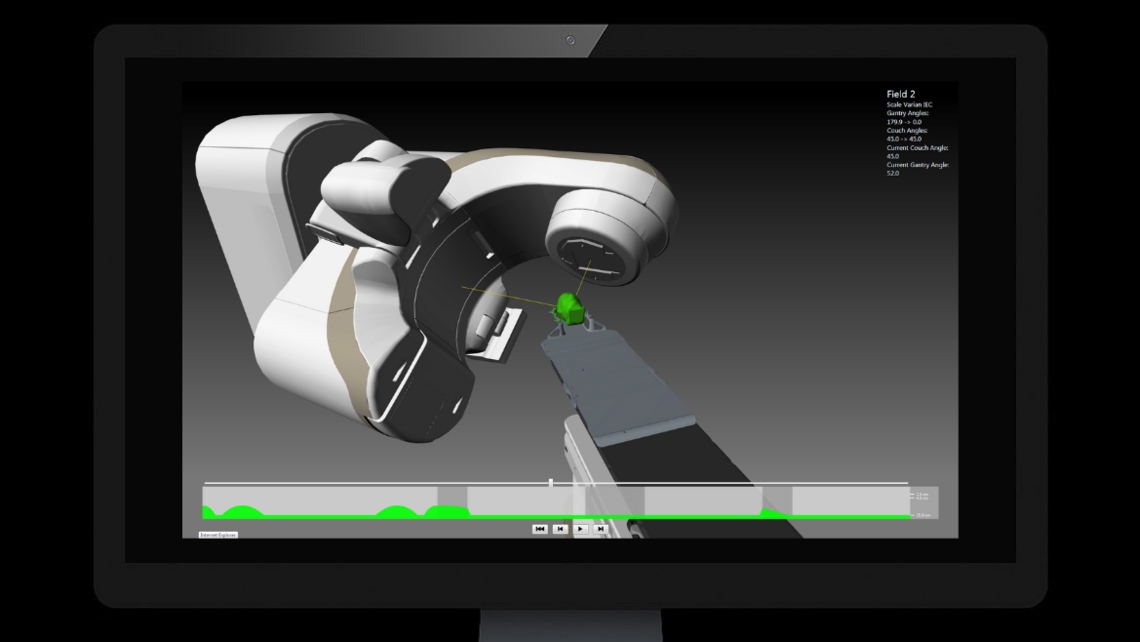

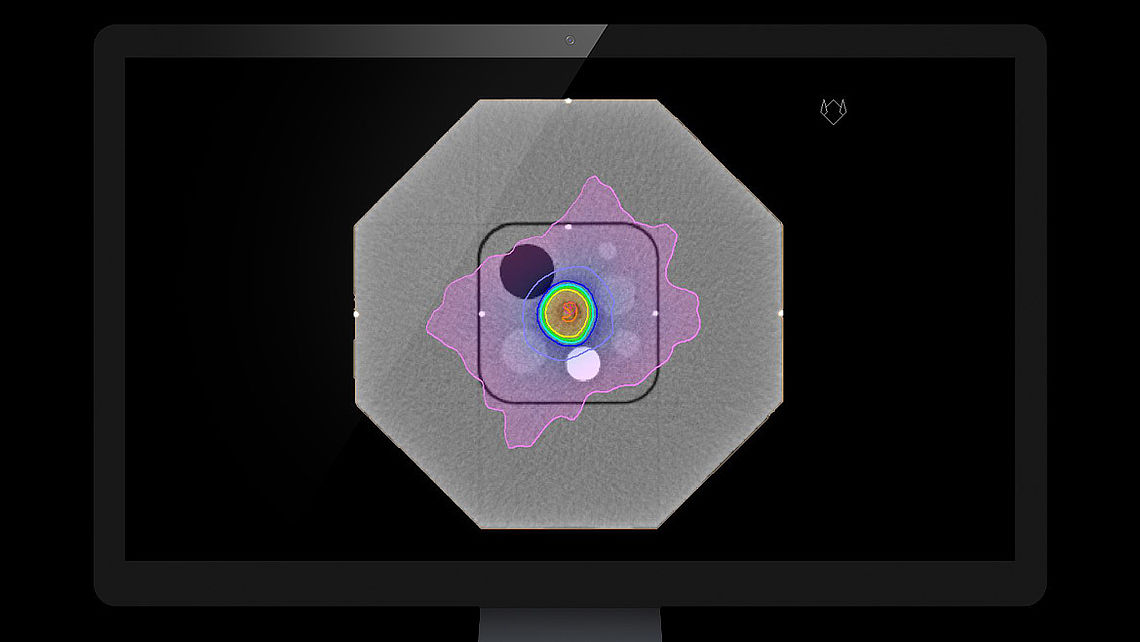

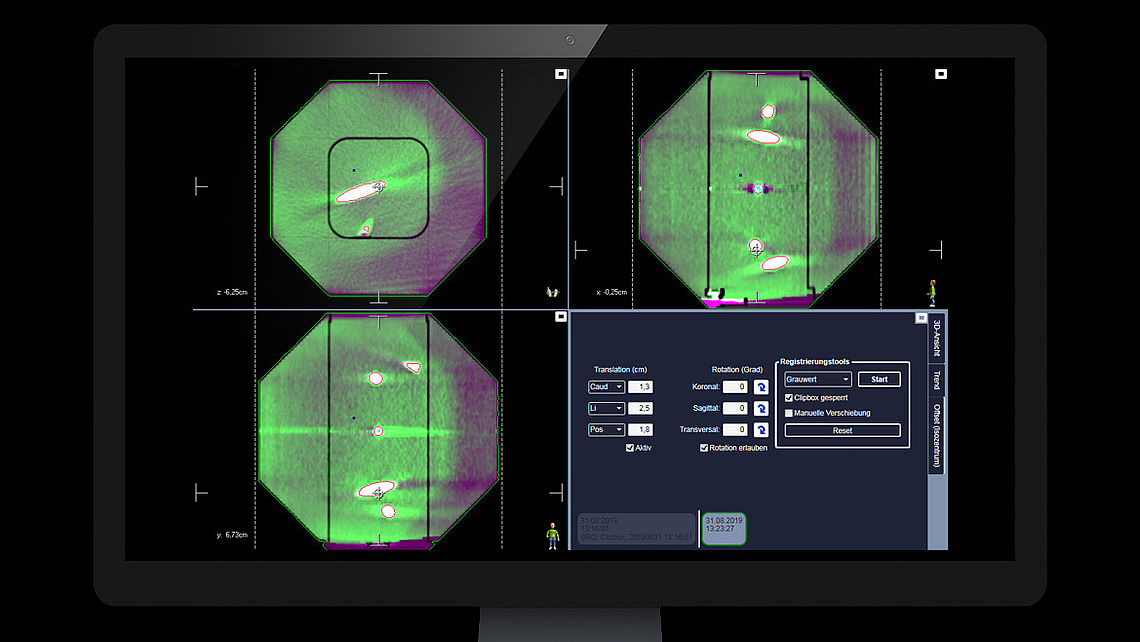

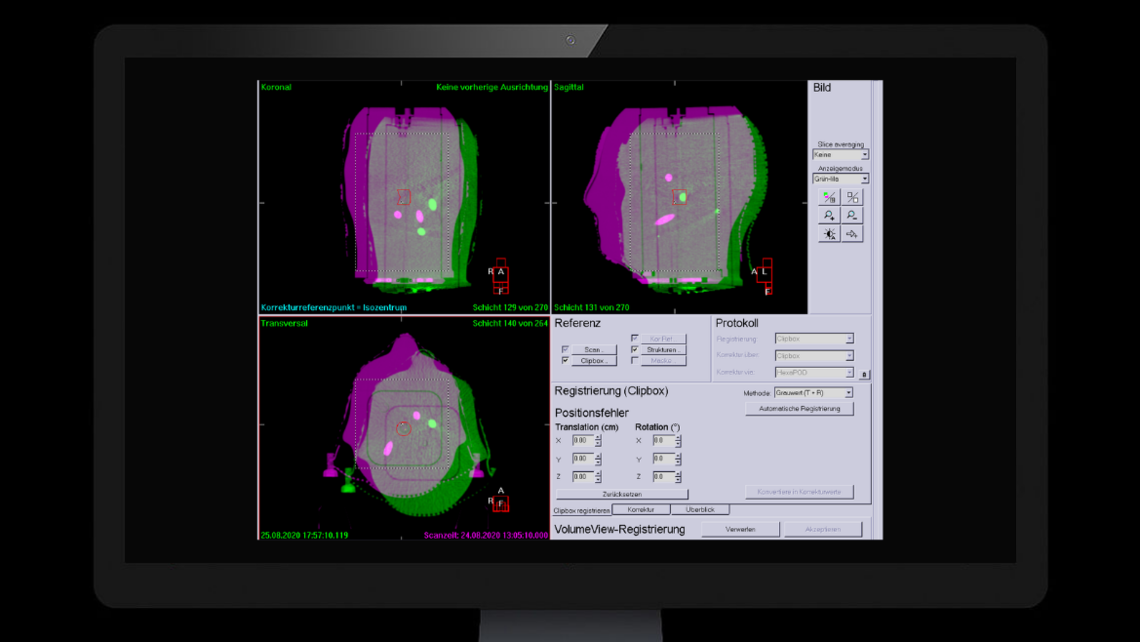

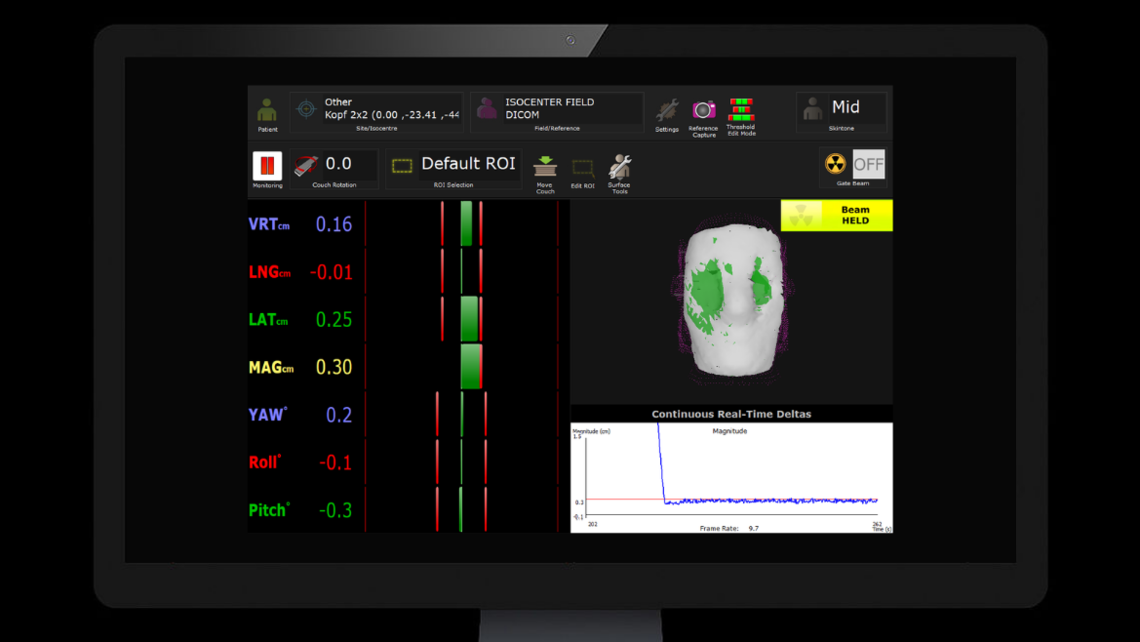

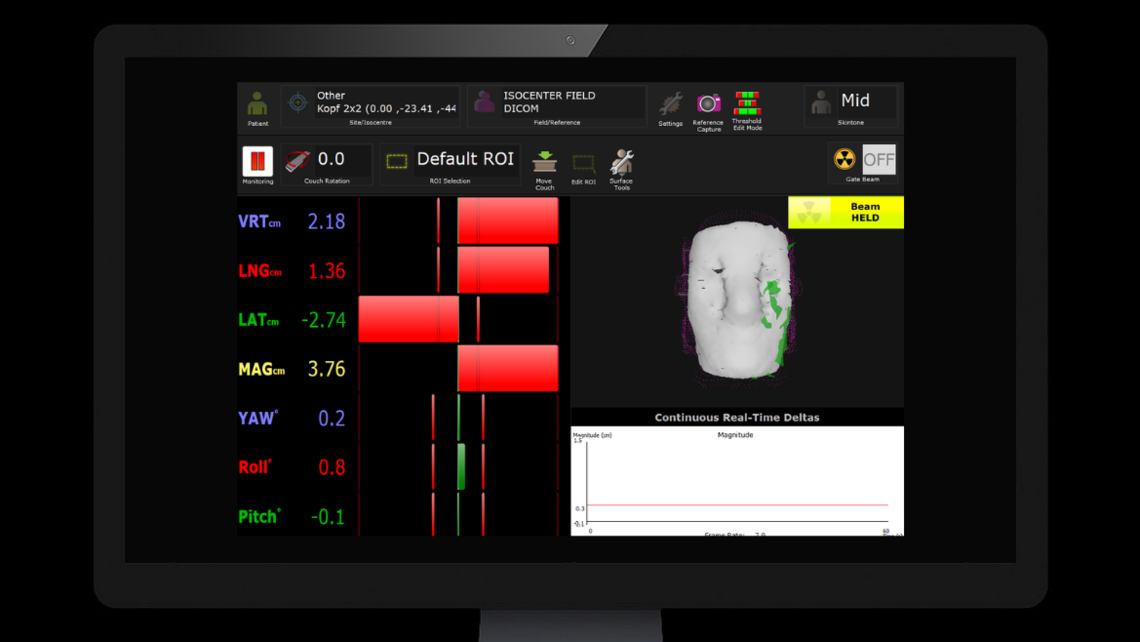

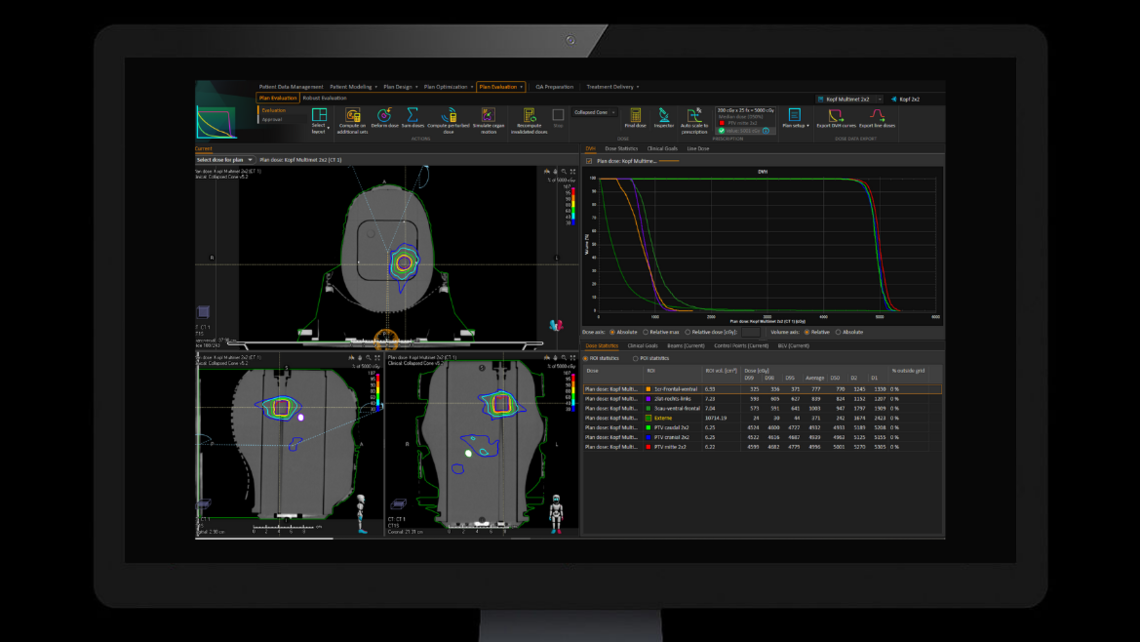

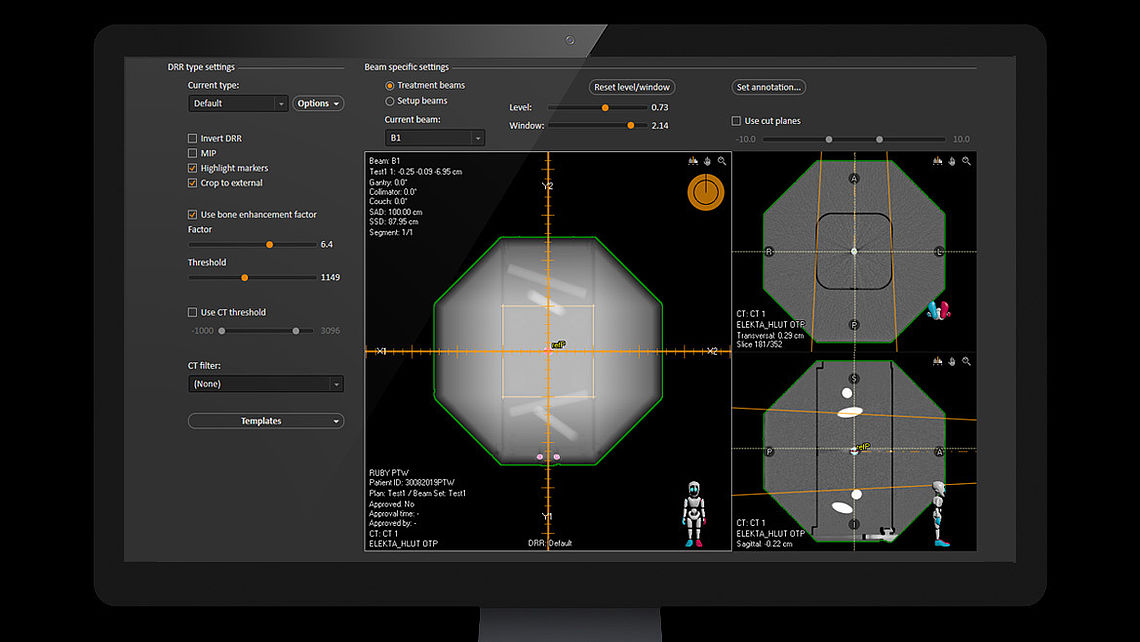

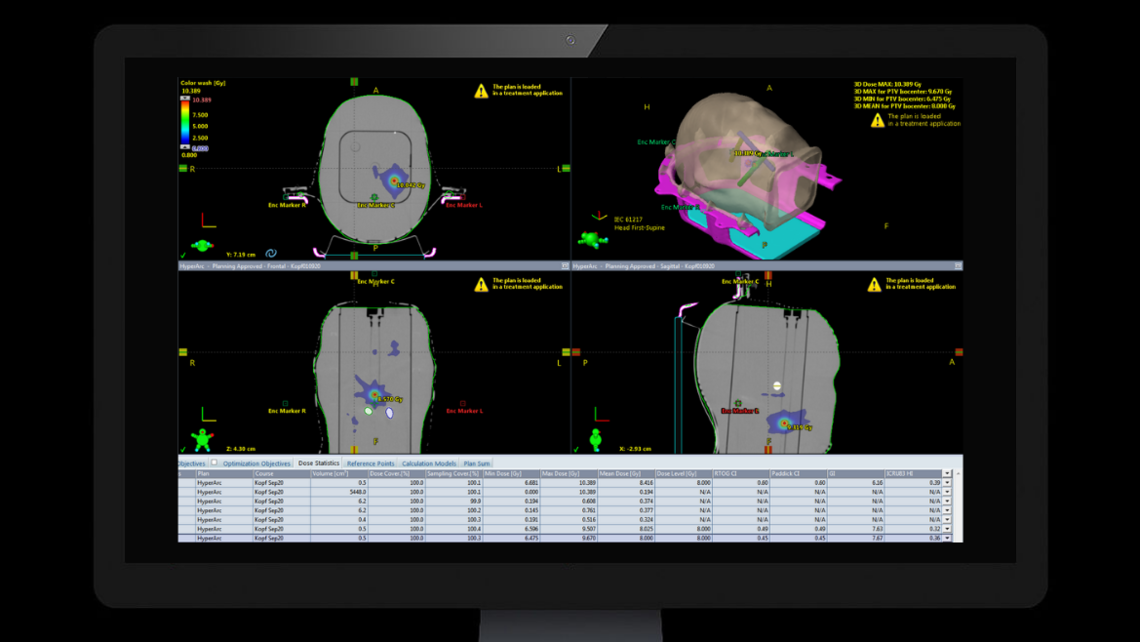

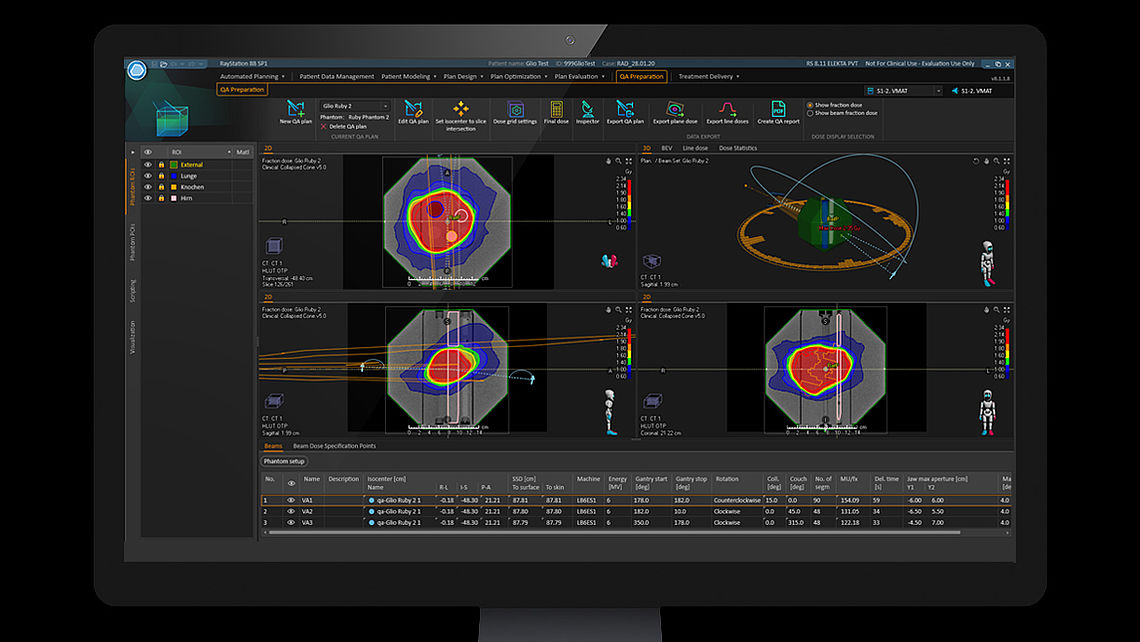

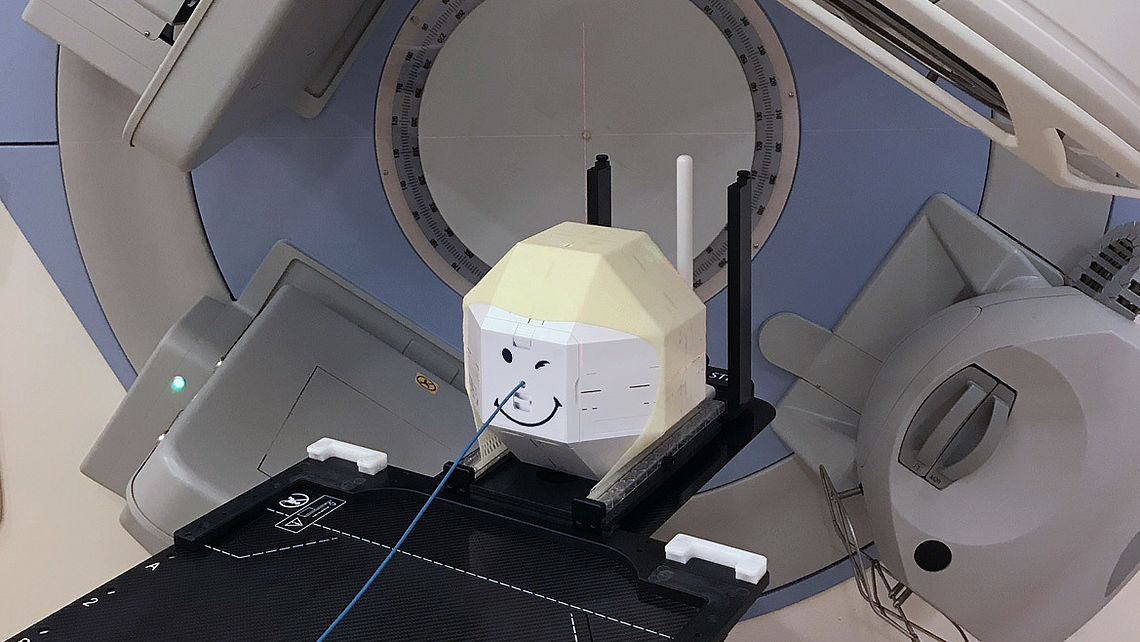

RUBY in Clinical Use

Explore how RUBY supports your QA needs.

SPECIFICATIONS

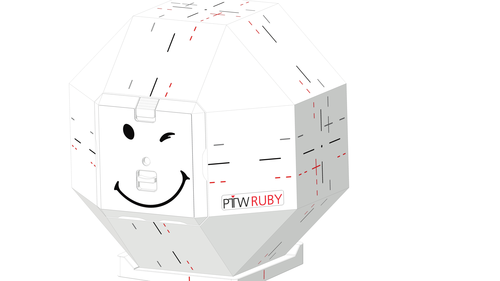

Design Polyhedron phantom with octahedral symmetry (10 cm side length) and cubic hole for QA test inserts in phantom center
Laser Alignment Marks: Black: phantom center
Gray: translational shift
- coronal: 13 mm
- transversal: 18 mm
- sagittal: 25 mm
Red: translational and rotational shift
- coronal: 13 mm, rotation 1.5°
- transversal: -12 mm, rotation 1°
- sagittal: -15 mm, rotation 2.5°

Material: Polystyrene
Density: 1.05 g/cm³
Dimensions: 241.4 mm x 231.4 mm x 241.4 mm (W x D x H)
Weight: 6.7 kg
Design Cubic insert with automatic locking mechanism, containing three cylindrical CT markers, multiple cavities and a detector borehole in the center.
Detector holders for: Semiflex 3D ionization chamber (31021), PinPoint® 3D ionization chamber (31022),
microSilicon diode (60023), microDiamond® ( 60019 )

Cavities: Three cavities with MRI-visible material:
Ø 25 mm, Ø 15 mm und Ø 10 mm
Three cavities with tissue-equivalent, CT-visible material:
Lung, brain and bone (according to ICRU-44 /-46 standards)

Material: Polystyrene
Dimensions: 118 mm x 241.4 mm x 118 mm (W x D x H)
Weight: 2.4 kg

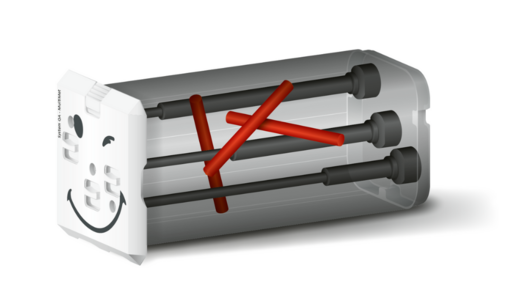

Design Homogeneous cubic insert with automatic locking mechanism, containing three cylindrical CT markers, a high-density Ø 8 mm sphere in the center, four tissue-equivalent Ø 12 mm bone rods in the volume
Material: Polystyrene
Dimensions: 118 mm x 241.4 mm x 118 mm (W x D x H)
Weight: 2.5 kg
Design Base plate with red laser alignment marks for correct setup of RUBY phantom. Requires RUBY insert for “LINAC QA”.
Material: Polystyrene
Density: 1.05 g/m³
Dimensions: 130 mm x 130 mm x 20 mm (W x D x H)
Weight: 0.25 kg
Design Homogeneous cubic insert with automatic locking mechanism, containing three cylindrical CT markers and a detector borehole in the center. Dummy plug for CT scans included.
Detector holders for:
Semiflex 3D ionization chamber (31021),
PinPoint® 3D ionization chamber (31022),
microSilicon diode (60023),
microDiamond® ( 60019)

Material: Polystyrene
Density: 1.05 g/m³
Dimensions: 118 mm x 241.4 mm x 118 mm (W x D x H)
Weight: 2.5 kg
Design Homogeneous cubic insert for radiochromic films with automatic locking mechanism and three cylindrical CT markers.
Plastic needle for film perforation included.

Material: Polystyrene
Density: 1.05 g/m³
Dimensions: 118 mm x 241.4 mm x 118 mm (W x D x H)
Weight: 2.5 kg
